Details description

CFN10C617N06FA

下载产品PDF

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

617

MHz

Bandwidth [BW]

fo ±3.0 [614.0 ~ 620.0]

MHz

Insertion Loss in BW

3.0

dB max

Ripple in BW

1.0

dB max

Return Loss in BW

18.0

dB max

Attenuation

   RAbsolute Value

   £Relative Value

44 dB min @ 585.63

MHz

60 dB min @ 551.27

MHz

45 dB min  @ 951

MHz



MHz

Group Delay Variation



ns max

Input Power

3.0

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃

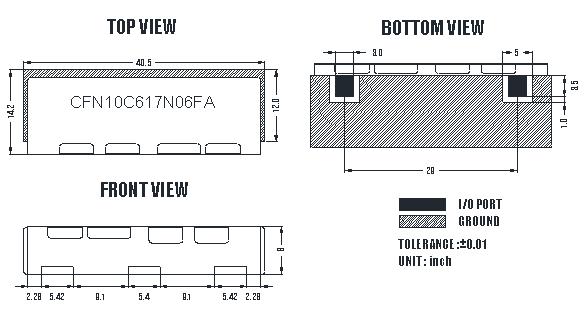

机械规格图

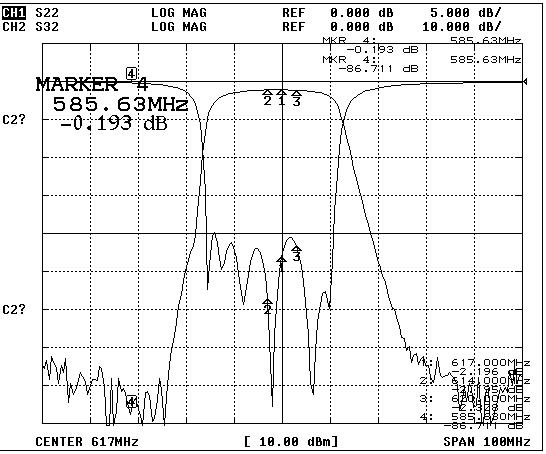

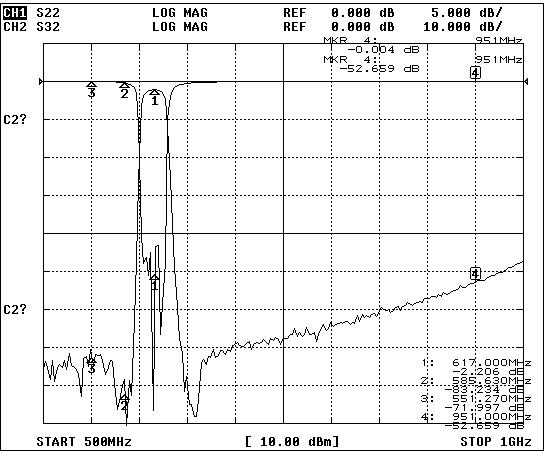

绘图数据

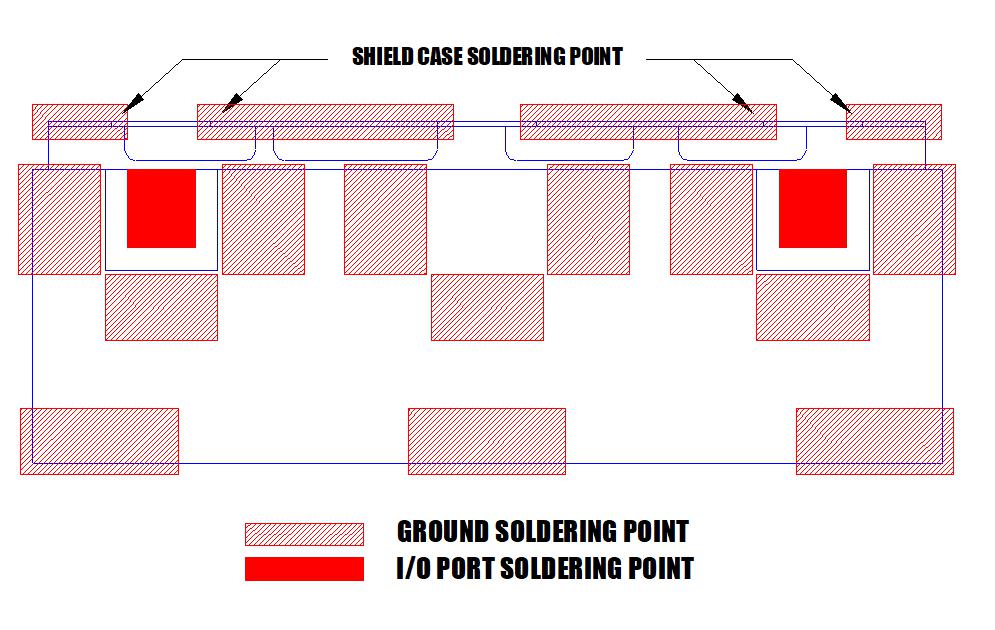

推荐的PC板模式

焊接条件
