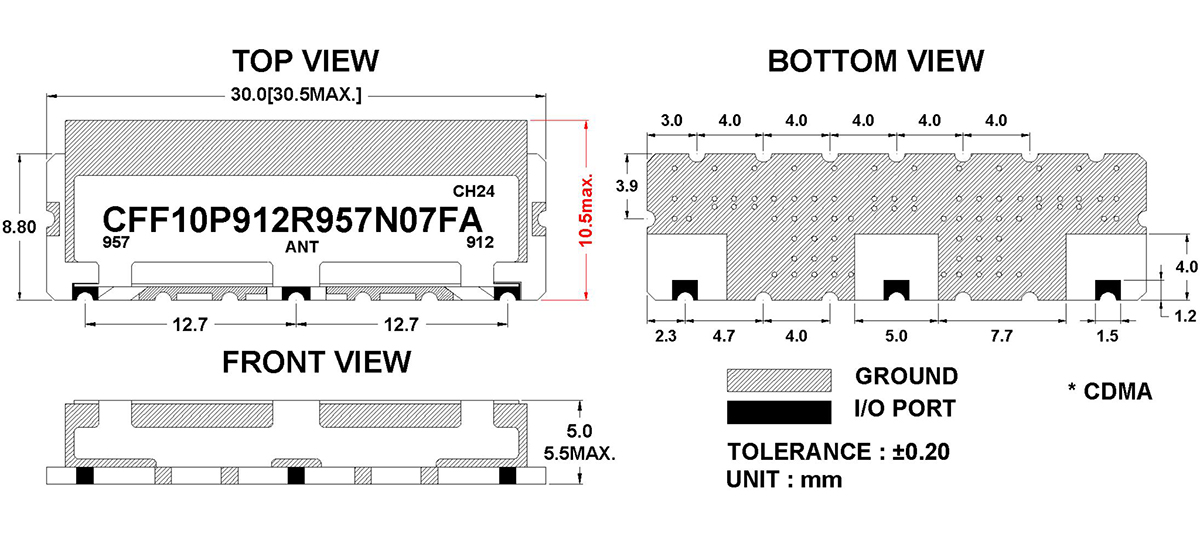

CFF10P912R957N07FA

ITEMS

ANT >> Low

ANT >> High

UNIT

Center Frequency [fo]

912.0

957.0

MHz

Bandwidth [BW]

fo ±3.5[908.5 ~915.5]

fo ±3.5[953.5 ~960.5]

MHz

Insertion Loss in BW

2.5

2.5

dB max

Ripple in BW

0.5

0.5

dB max

Return Loss in BW

20.0

20.0

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

50.0 dB min. @[953.5 ~960.5]

60.0dB min. @[908.5 ~915.5]

MHz

10.0  dB min. @ [937.5 ~   ]

10.0dB min. @ [937.5~     ]

MHz

    dB min. @ [    ~     ]

dB min. @ [    ~     ]

MHz

    dB min. @ [    ~     ]

dB min. @ [    ~     ]

MHz

Group Delay Variation

ns max

Input Power

3.0

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃
