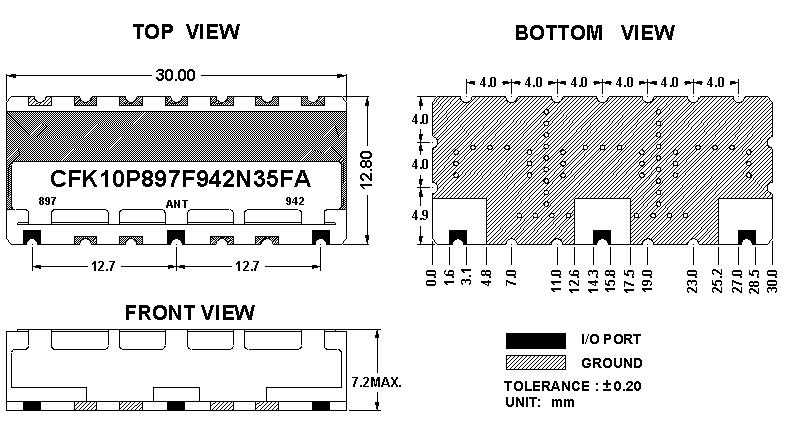

CFK10P897F942N35FA

ITEMS

ANT >> Low

ANT >> High

UNIT

Center Frequency [fo]

897.5

942.5

MHz

Bandwidth [BW]

fo ±17.5 [880.0~915.0]

fo ±17.5 [925.0~960.0]

MHz

Insertion Loss in BW

4.0

4.0

dB max

Ripple in BW

3.5

3.5

dB max

Return Loss in BW

10.0

10.0

dB min

Attenuation

   £ Absolute Value

   R Relative  Value

30.0dBc min.@[925.0~960.0]

30.0dBc min.@[925.0~960.0]

MHz

0.5 dBc min. @ [879 & 916 ]

0.5 dBc min. @ [879  & 916 ]

MHz

2.0dBc min.@ [ 875.0&920.0 ]

2.0dBc min.@ [ 875.0&920.0 ]

MHz

dBc min. @ [     &     ]

 dBc min. @ [     &     ]

MHz

Group Delay Variation

ns max

Input Power

3.0

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃
