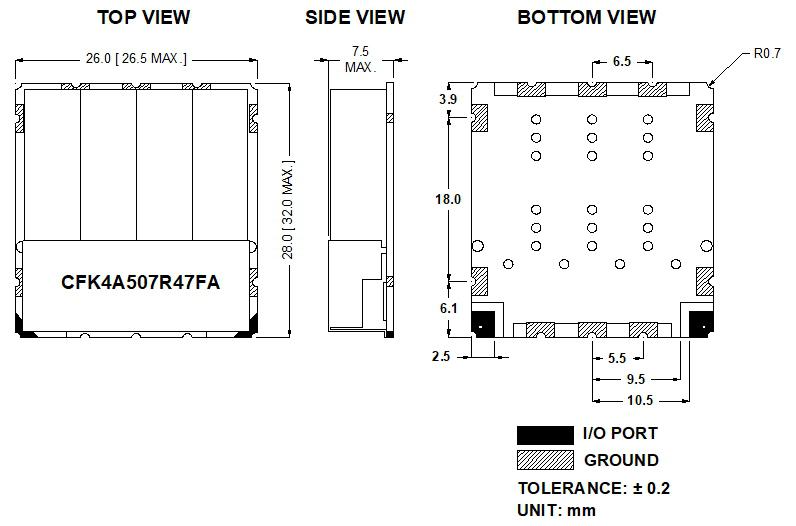

CFK4A507R47FA

ITEMS

SPEC

UNIT

Center Frequency [fo]

507.5

MHz

Bandwidth [BW]

fo ±23.5  [484.0 ~ 531.0]

MHz

Insertion Loss in BW

1.5

dB max

Ripple in BW

0.4

dB max

Return Loss in BW

15.0

dB min

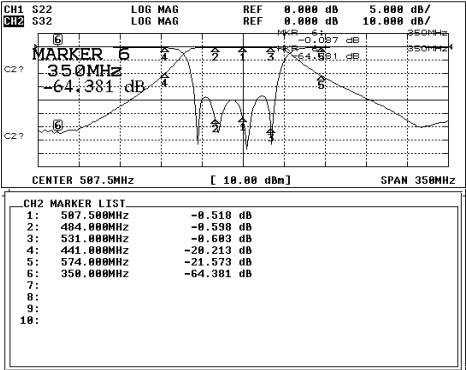

Attenuation

   R Absolute Value

   £ Relative Value

20.0 dB min @ fo ±    [441.0  &     ]

MHz

20.0 dB min @ fo ±    [574.0  &     ]

MHz

60.0 dB min @ fo ±    [350.0  &     ]

MHz

   dB min @ fo ±     [      &     ]

MHz

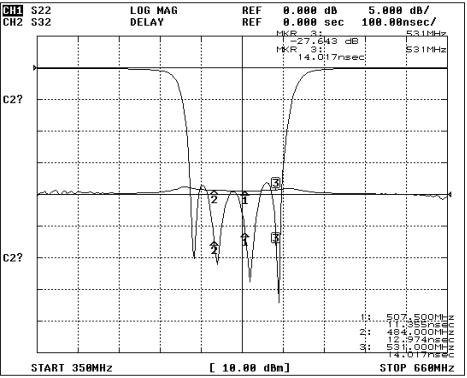

Group Delay Variation

5.0

ns max

Input Power

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃  to  +85℃
