CFK4A472R47FA

ITEMS

SPEC

UNIT

Center Frequency [fo]

472.5

MHz

Bandwidth [BW]

fo ±23.5  [449.0 ~ 496.0]

MHz

Insertion Loss in BW

1.5

dB max

Ripple in BW

0.4

dB max

Return Loss in BW

15.0

dB min

Attenuation

  R Absolute Value

  £Relative  Value

20.0 dB min @ fo ±   [406.0  ~      ]

MHz

20.0 dB min @ fo ±   [539.0  &      ]

MHz

60.0 dB min @ fo ±   [350.0  &      ]

MHz

dB min @ fo ±   [       &      ]

MHz

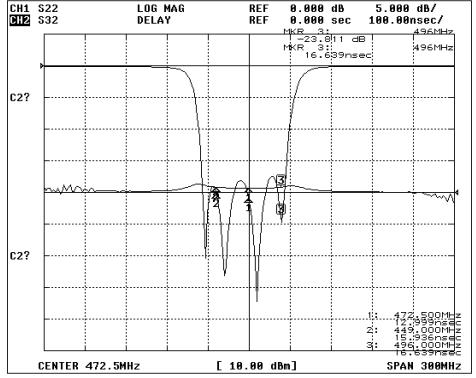

Group Delay Variation

5.0

ns max

Input Power

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃  to  +85℃
