CFF4A480R36FA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
480.0 |
MHz |
|
Bandwidth [BW] |
fo ±18.0 [462.0 ~ 498.0] |
MHz |
|
Insertion Loss in BW |
2.0 |
dB max |
|
Ripple in BW |
1.0 |
dB max |
|
Return Loss in BW |
15.0 |
dB min |
|
Attenuation £ Absolute Value R Relative Value |
40.0 dB min @ fo -100 |
MHz |
|
40.0 dB min @ fo +100 |
MHz |
|
|
dB min @ fo ± [ ~ ] |
MHz |
|
|
dB min @ fo ± [ ~ ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
|
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

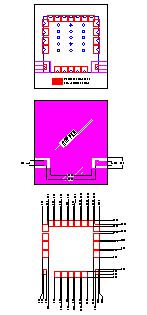

机械规格图

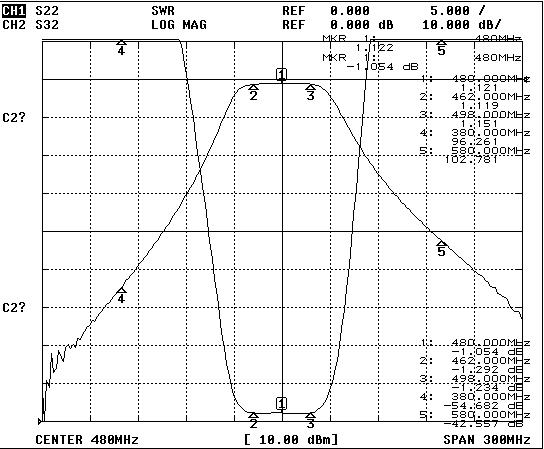

绘图数据
推荐的PC板模式

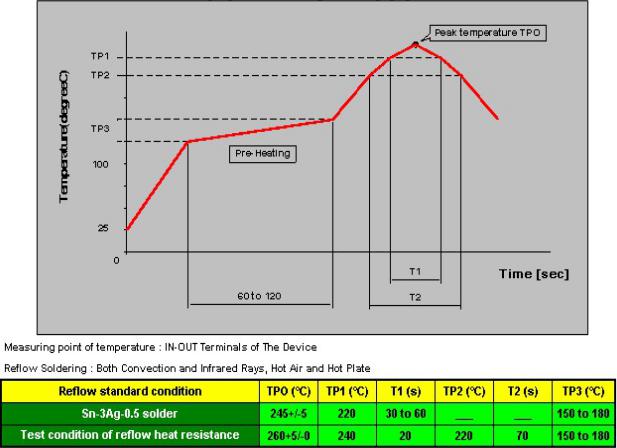

焊接条件
