CFF8D545F629R30-18FB
下载产品PDF
电气规格表
|
ITEMS |
ANT >> Low |
ANT >> High |
UNIT |
|
Center Frequency [fo] |
545.0 |
629.0 |
MHz |
|
Bandwidth [BW] |
fo ±15.0 [530.0 ~ 560.0] |
fo ±9.0 [620.0 ~ 638.0] |
MHz |
|
Insertion Loss in BW |
3.0 |
3.0 |
dB max |
|
Ripple in BW |
1.0 |
1.0 |
dB max |
|
Return Loss in BW |
10.0 |
10.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
48.0 dB min. @ [620.0 ~ 638.0 ] |
55.0 dB min. @ [530.0 ~ 560.0 ] |
MHz |
|
30.0 dB min. @ [DC ~ 400.0 ] |
30.0 dB min. @ [DC ~ 500.0 ] |
MHz |
|
|
25.0 dB min. @ [800.0 ~1000.0] |
25.0 dB min. @ [766.0 ~1000.0 ] |
MHz |
|
|
10.0 dB min. @ [518.0 ~ ] |
dB min. @ [ ~ ] |
MHz |
|
|
Isolations |
55.0 dB min @ [530.0 ~ 560.0 ] |
MHz |
|
|
48.0 dB min @ [620.0 ~ 638.0 ] |
MHz |
||
|
Group Delay Variation |
|
ns max |
|
|
Input Power |
3.0 |
W max. |
|
|
In/Out Impedance |
50 Ω |
||
|
Operation Temperature Range |
-40℃ to +85℃ |
||

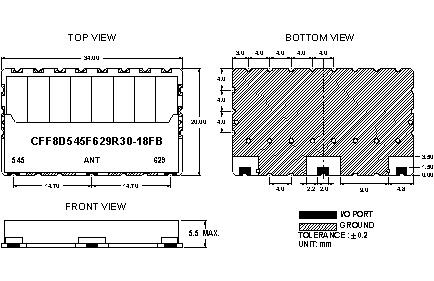

机械规格图

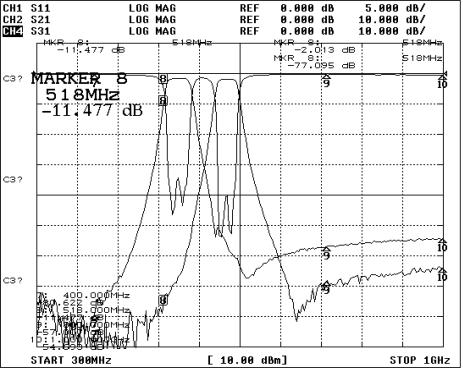

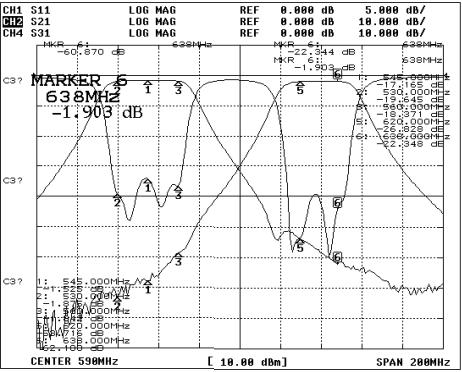

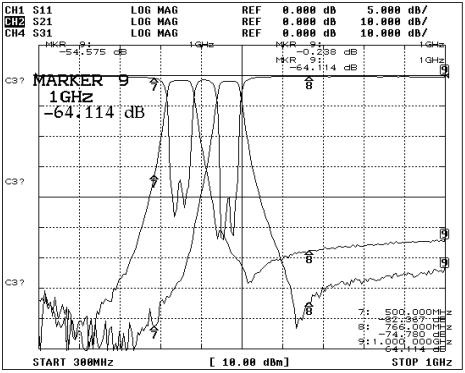

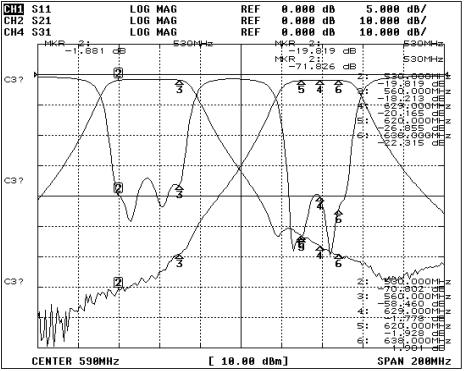

绘图数据
推荐的PC板模式

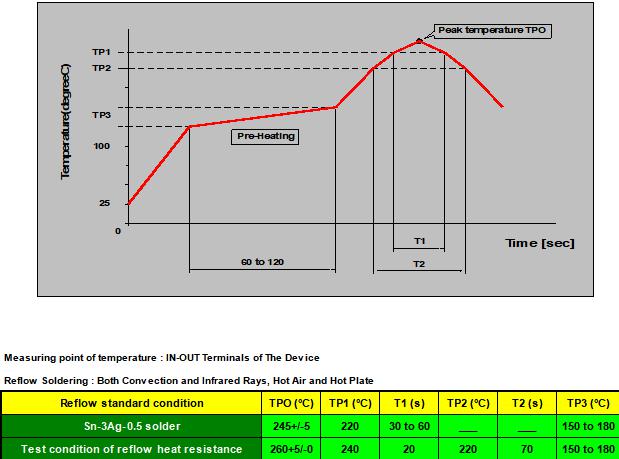

焊接条件
