CFD5A416R20SA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
416.0 |
MHz |
|
Bandwidth [BW] |
fo ±10.0 [406.0 ~ 426.0] |
MHz |
|
Insertion Loss in BW |
3.2 |
dB max |
|
Ripple in BW |
1.0 |
dB max |
|
Return Loss in BW |
15.0 |
dB min |
|
Attenuation R Absolute Value £Relative Value |
30.0 dB min @ fo -35 [ 381 .0] |
MHz |
|
30.0 dB min @ fo +35 [ 451.0 ] |
MHz |
|
|
dB min @ fo ± [ ~ ] |
MHz |
|
|
dB min @ fo ± [ ~ ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
|
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-30℃ to +85℃ |
|

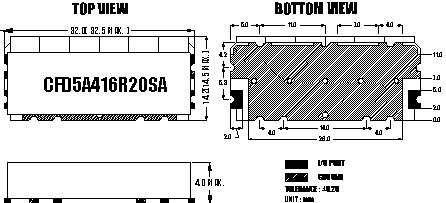

机械规格图

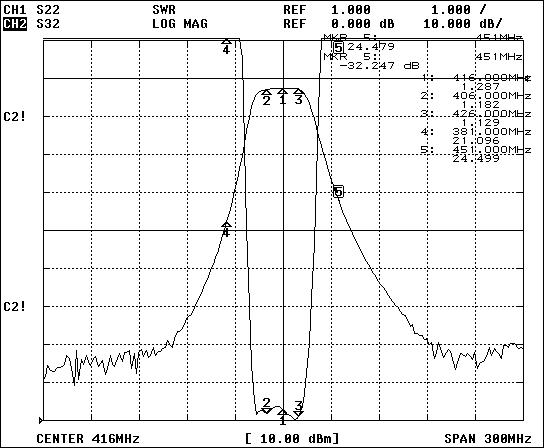

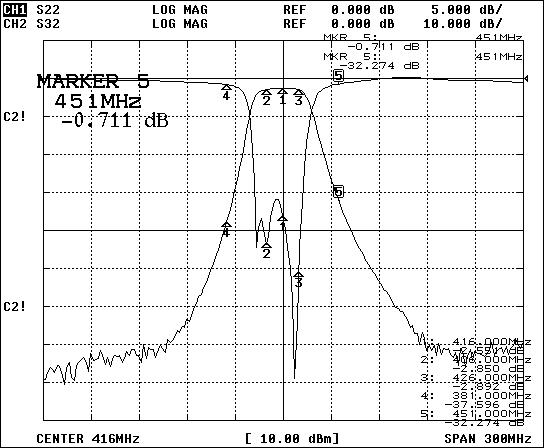

绘图数据

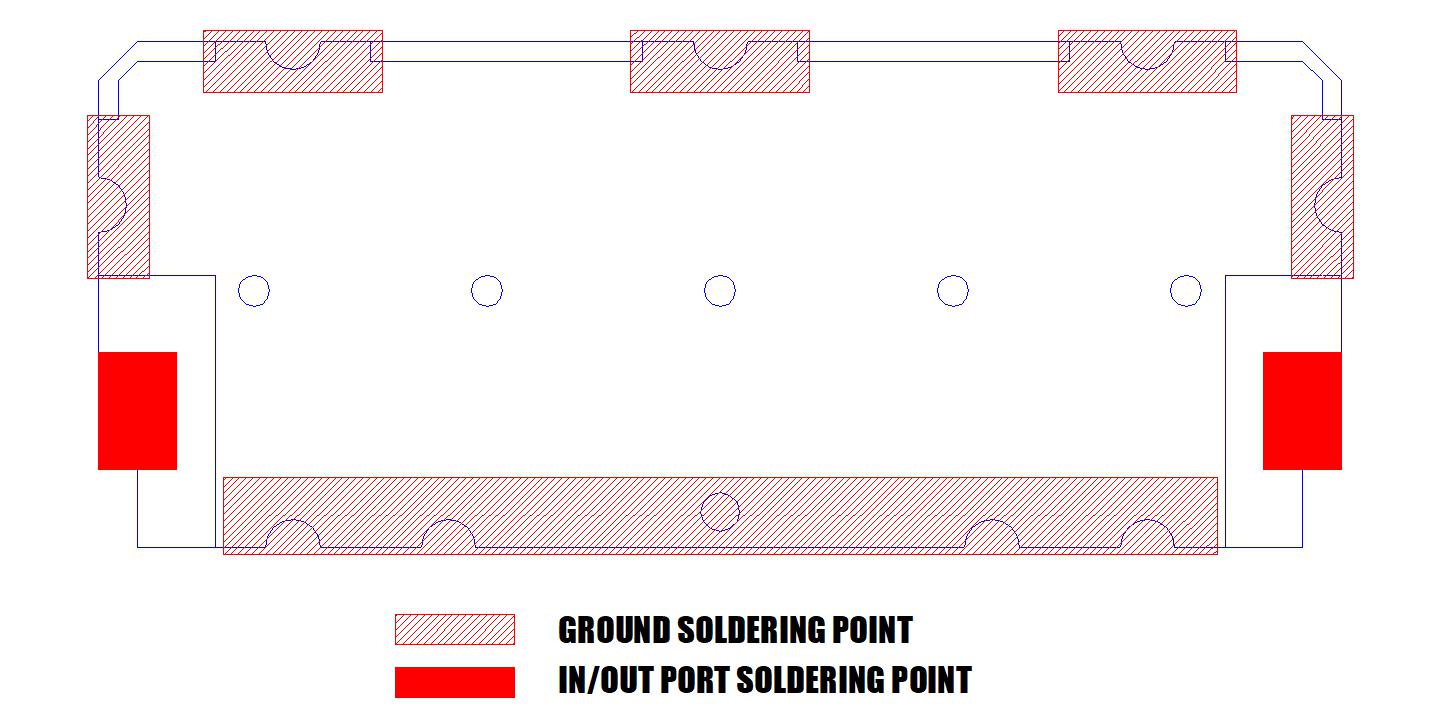

推荐的PC板模式

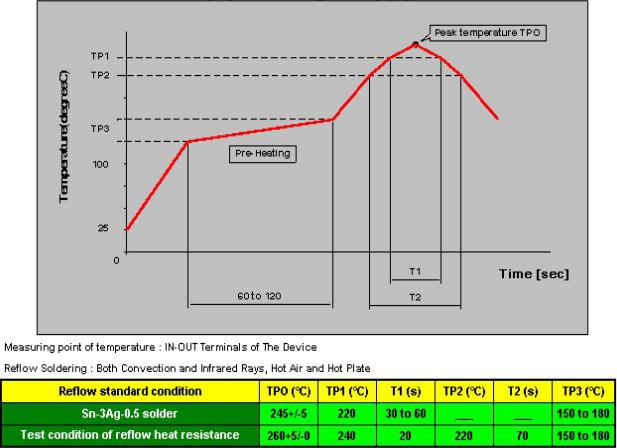

焊接条件
