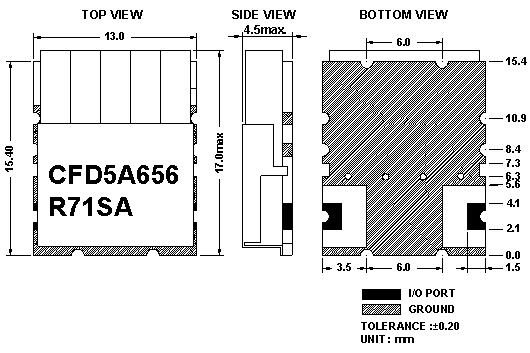

CFD5A656R71SA

ITEMS

SPEC

UNIT

Center Frequency [fo]

656.0

MHz

Bandwidth [BW]

fo ±35.5  [620.5 ~ 691.5]

MHz

Insertion Loss in BW

2.0

dB max

Ripple in BW

0.5

dB max

Return Loss in BW

15.0

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

14.0 dB min @ fo ±   [590.0  &   ]

MHz

12.0 dB min @ fo ±   [721.0  &   ]

MHz

60.0 dB min @ fo ±    [350.0  ~    ]

MHz

dB min @ fo ±      [     &    ]

MHz

Group Delay Variation

5

ns max

Input Power

2.0

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃  to  +85℃
