CFD4A602R40SA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
602.0 |
MHz |
|
Bandwidth [BW] |
fo ±20.0 [582.0 ~ 622.0] |
MHz |
|
Insertion Loss in BW |
1.5 |
dB max |
|
Ripple in BW |
0.4 |
dB max |
|
Return Loss in BW |
15.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
20.0 dB min. @ fo ± [532.0 ~ ] |
MHz |
|
20.0 dB min. @ fo ± [672.0 & ] |
MHz |
|
|
60.0 dB min. @ fo ± [350.0 & ] |
MHz |
|
|
dB min @ fo ± [ & ] |
MHz |
|
|
Group Delay Variation |
5 |
ns max |
|
Input Power |
|
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

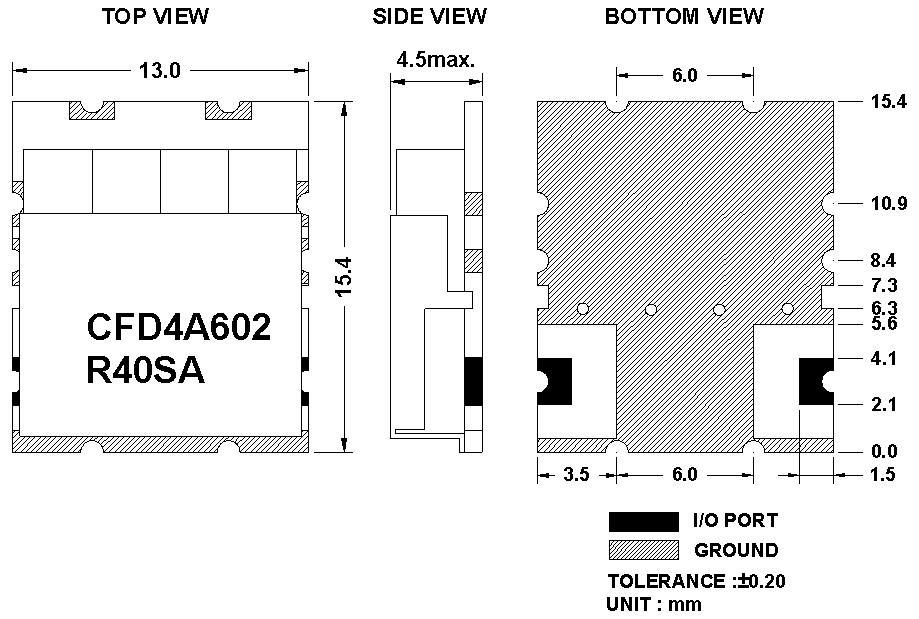

机械规格图

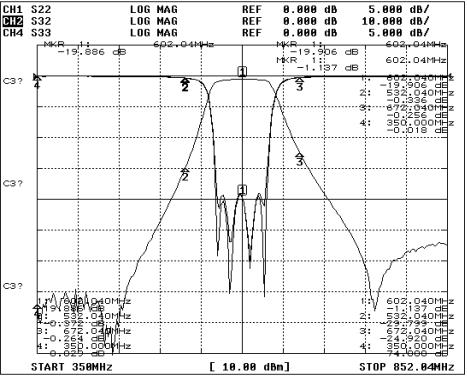

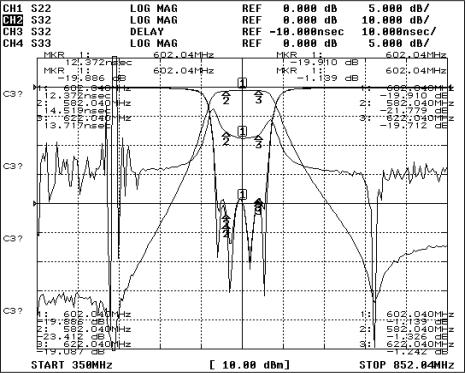

绘图数据
推荐的PC板模式

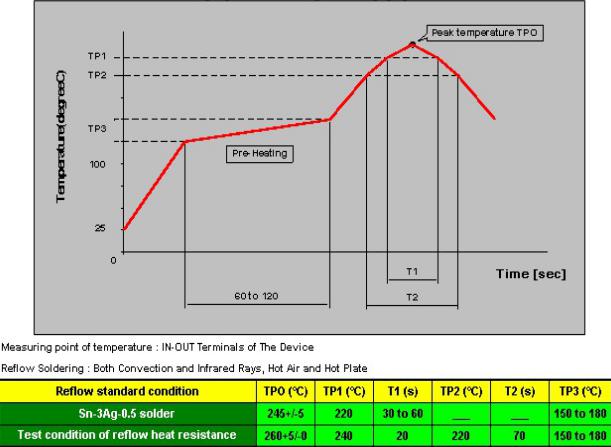

焊接条件
