Details description

CFD4A2140R60SA

下载产品PDF

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

2140

MHz

Bandwidth [BW]

fo ±30.0  [2110 ~ 2170]

MHz

Insertion Loss in BW

2.2

dB max

Ripple in BW

0.6

dB max

Return Loss in BW

15.0

dB min

Attenuation

   £ Absolute Value

   R  Relative  Value

40 dBc min @ fo ± 200[ 1940~ 2140]

MHz

35dBc min @ fo ± [  4280   ]

MHz

dBc min @ fo ± [    ~    ]

MHz

dBc min @ fo ± [    ~    ]

MHz

Group Delay Variation



ns max

Input Power



W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃

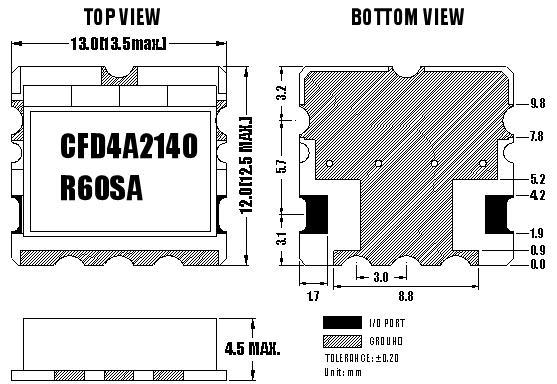

机械规格图

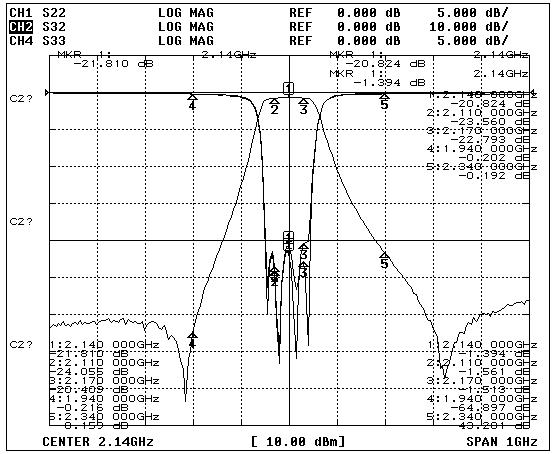

绘图数据

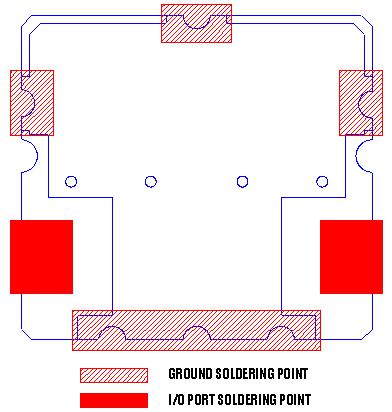

推荐的PC板模式

焊接条件
