CFK5A2140R60SA
下载产品PDF

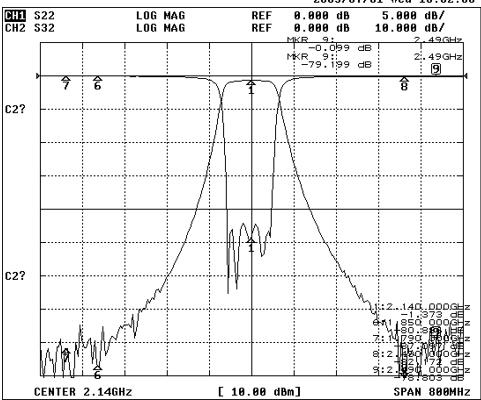

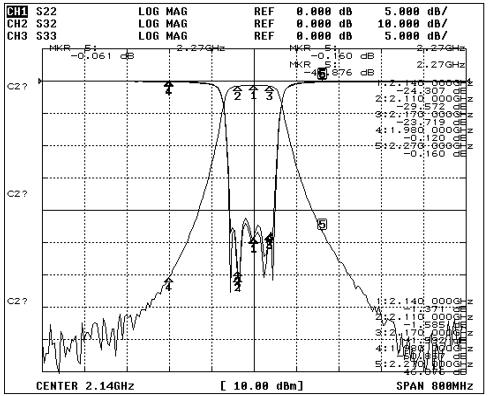

电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
2140 |
MHz |
|
Bandwidth [BW] |
fo ±30.0 [2110 ~ 2170] |
MHz |
|
Insertion Loss in BW |
2.0 |
dB max |
|
Ripple in BW |
0.5 |
dB max |
|
Return Loss in BW |
15.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
45dBc min @ fo ± [ 1980 ] |
MHz |
|
60dBc min @ fo ± [ 1850 ] |
MHz |
|
|
35dBc min @ fo ± [ 1790 ] |
MHz |
|
|
35dBc min @ fo ± [ 2270 ] |
MHz |
|
|
60dBc min @ fo ± [ 2430 ] |
MHz |
|
|
60dBc min @ fo ± [ 2490 ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
3 |
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

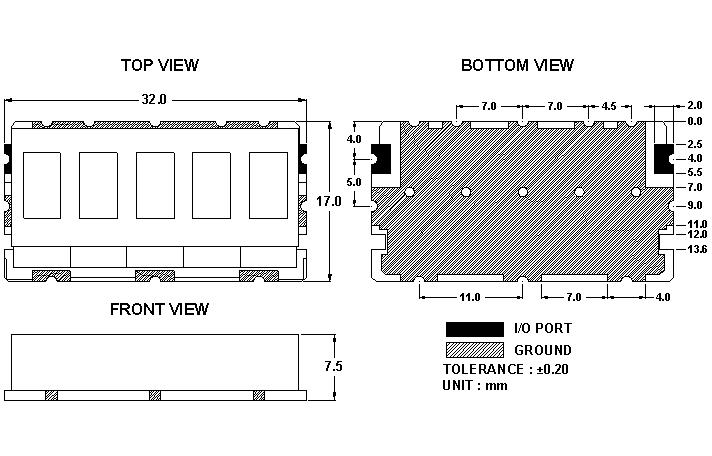

机械规格图
绘图数据

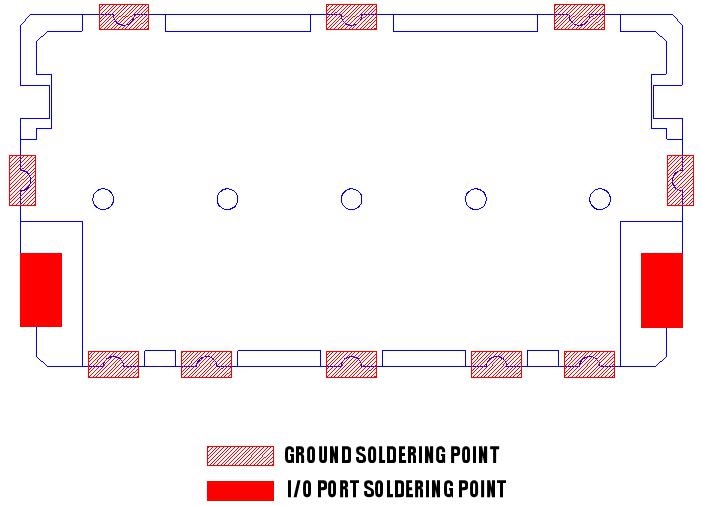

推荐的PC板模式
焊接条件
