CFD4A881R14SA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
881.685 |
MHz |
|
Bandwidth [BW] |
fo ±7 [874.685~888.685] |
MHz |
|
Insertion Loss in BW |
3.0 |
dB max |
|
Ripple in BW |
0.3 |
dB max |
|
Return Loss in BW |
18.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
60 dBc min. @ fo-115 [766.685] |
MHz |
|
60 dBc min. @ fo+115 [996.685] |
MHz |
|
|
dB min. @ fo ± [ & ] |
MHz |
|
|
dB min. @ fo ± [ & ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
2 |
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

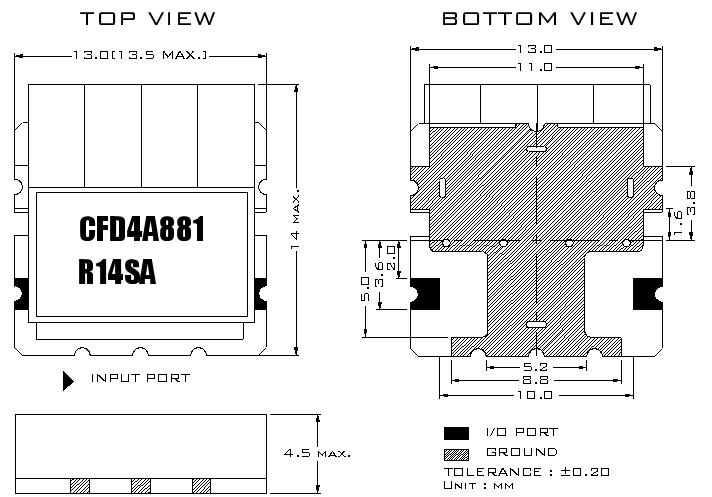

机械规格图

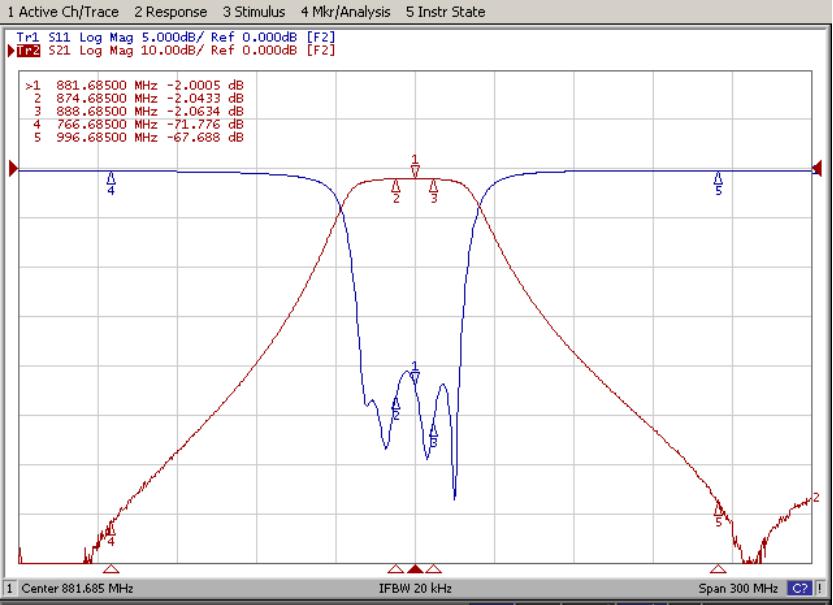

绘图数据

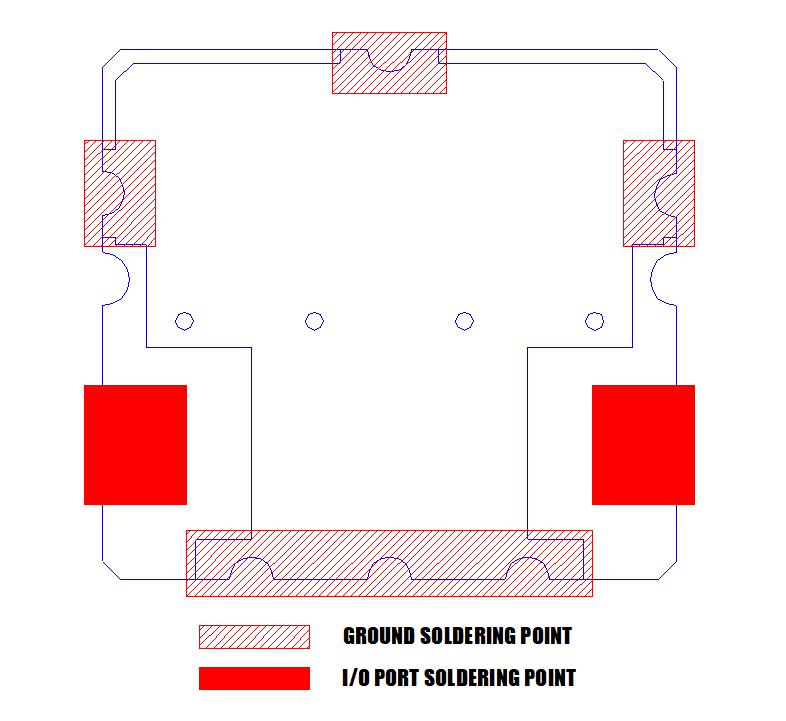

推荐的PC板模式
焊接条件
