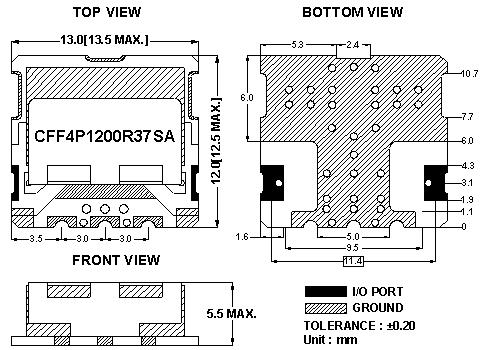

CFF4P1200R37SA

ITEMS

SPEC

UNIT

Center Frequency [fo]

1200.0

MHz

Bandwidth [BW]

fo ±18.6 [1181.4~1218.6]

MHz

Insertion Loss in BW

3.0

dB max

Ripple in BW

1.0

dB max

Return Loss in BW

17.0

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

 35dB min.  @ fo ± 80.0 [  1120  ~ ]

MHz

 35dB min.  @ fo ± 90.0 [        ~1290 ]

MHz

     dB  min.  @ fo ±      [ ~ ]

MHz

     dB  min.  @ fo ±      [ & ]

MHz

Group Delay Variation

ns max

Input Power

2.0

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃
