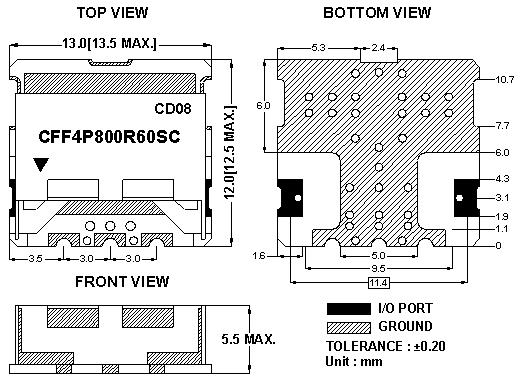

CFF4P800R60SC

ITEMS

SPEC

UNIT

Center Frequency [fo]

800.0

MHz

Bandwidth [BW]

fo ±30.0 [770.0~830.0]

MHz

Insertion Loss in BW

2.5

dB max

Ripple in BW

0.8

dB max

Return Loss in BW

15.0

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

  dB min.  @ fo ± [      ~ ]

MHz

  dB min.  @ fo ± [   ~ ]

MHz

     dB  min.  @ fo ±      [ ~ ]

MHz

     dB  min.  @ fo ±      [ & ]

MHz

Group Delay Variation

ns max

Input Power

2.0

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃
