Details description

CFM4P830R10SA

下载产品PDF

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

830.0

MHz

Bandwidth [BW]

fo ±5.0 [825.0~835.0]

MHz

Insertion Loss in BW

3.0

dB max

Ripple in BW

0.5

dB max

Return Loss in BW

18.0

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

50.0 dB min @ 380

MHz

50.0 dB min @ 690

MHz

50.0 dB min @ 760

MHz

40.0dB min @ 1520

MHz

Group Delay Variation



ns max

Input Power



W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃

机械规格图

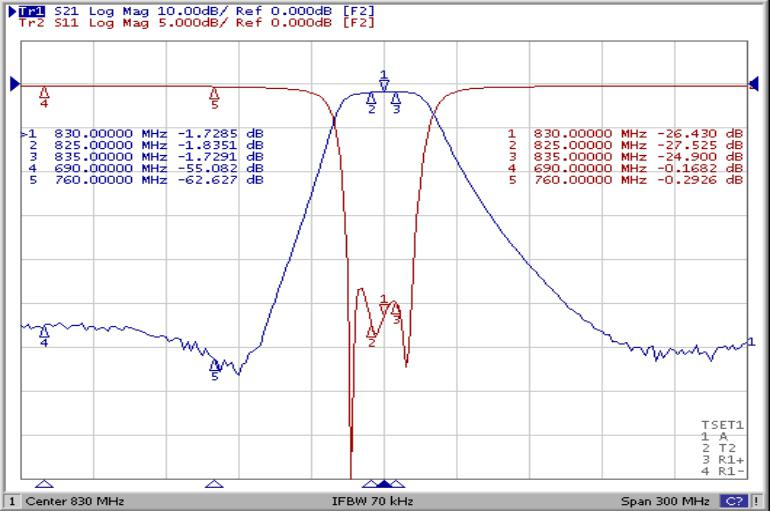

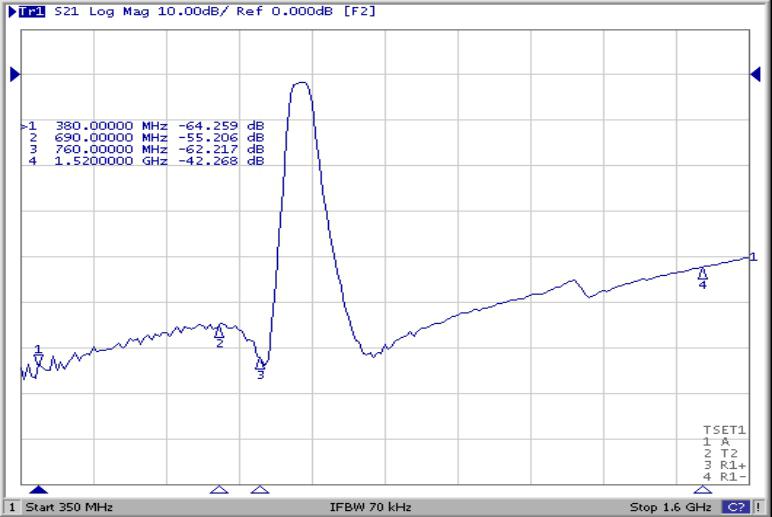

绘图数据

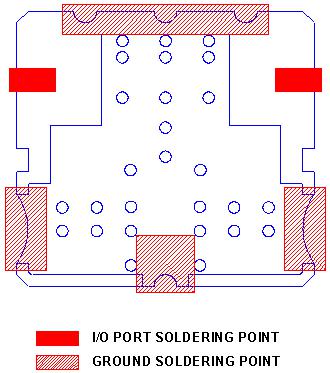

推荐的PC板模式

焊接条件
