CFN8P830N11FA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
829.5 |
MHz |
|
Bandwidth [BW] |
fo ±5.5 [824.0~835.0] |
MHz |
|
Insertion Loss in BW |
2.3 |
dB max |
|
Ripple in BW |
0.18dB/1MHZ max |
dB max |
|
Return Loss in BW |
20.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
30.0 dB min @ 1~750 |
MHz |
|
58.0 dB min @ 750~800 |
MHz |
|
|
18.0 dB min @ 800~810 |
MHz |
|
|
42.0dB min @ 845~854 |
MHz |
|
|
52.0dB min @ 869~880 |
MHz |
|
|
45.0dB min @ 880~1000 |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
2 |
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

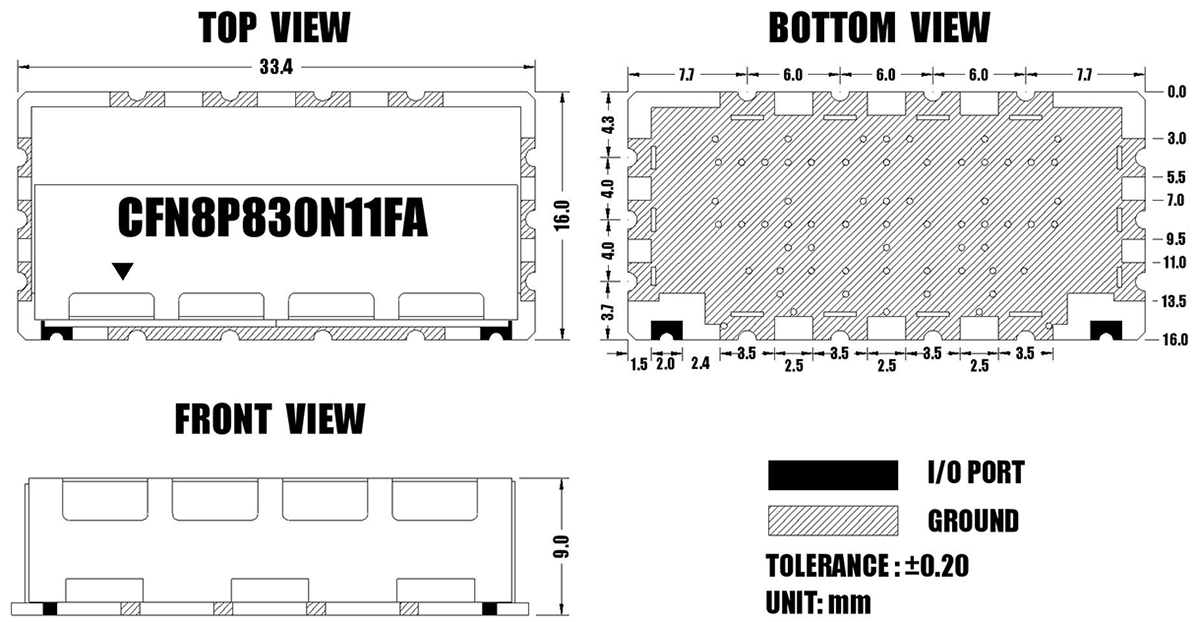

机械规格图

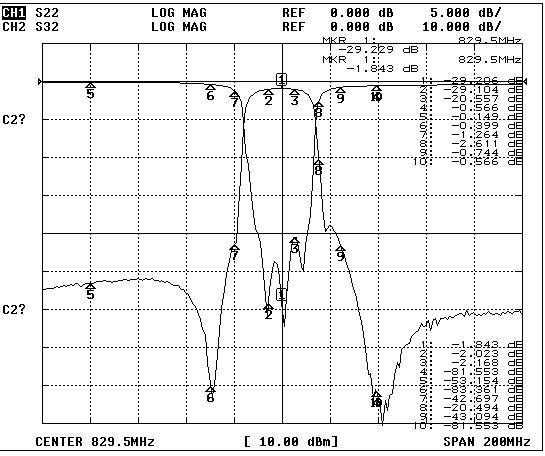

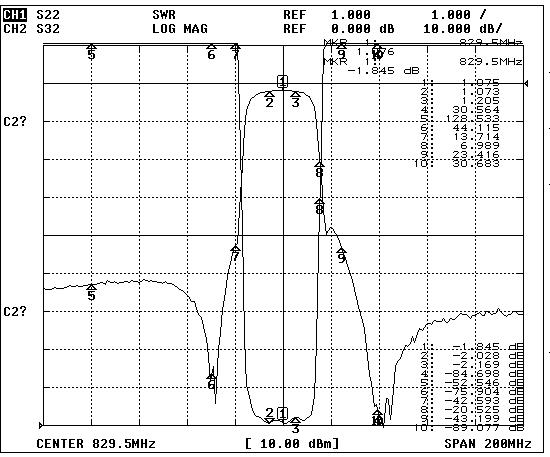

绘图数据

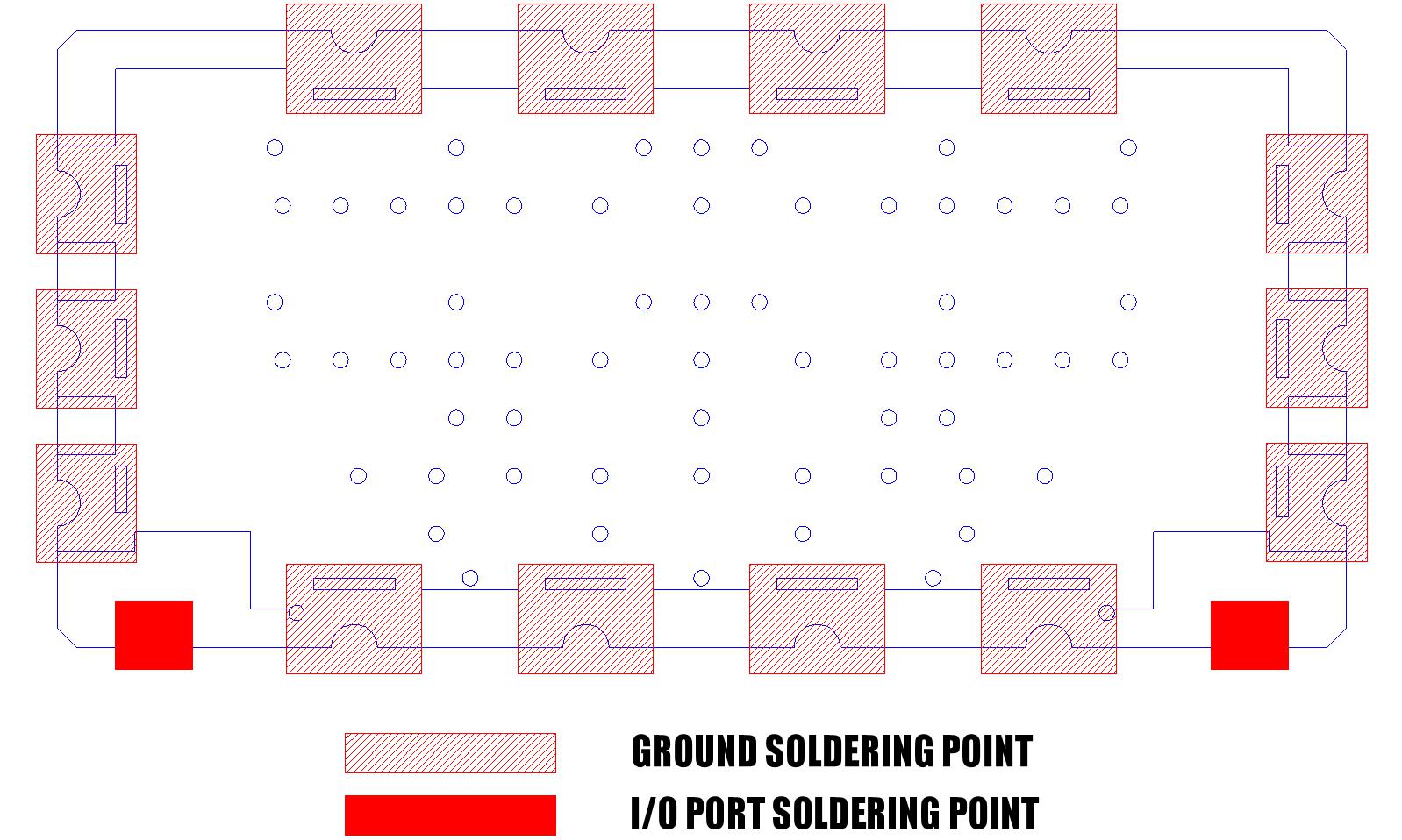

推荐的PC板模式
