CFG4P875R10SC
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
875 |
MHz |
|
Bandwidth [BW] |
fo ±5 [870~880] |
MHz |
|
Insertion Loss in BW |
3.0 |
dB max |
|
Ripple in BW |
0.5dB |
dB max |
|
Return Loss in BW |
18.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
50.0 dB min @ 472.5 |
MHz |
|
35.0 dB min @ 945 |
MHz |
|
|
50.0 dB min @1015 |
MHz |
|
|
30.0 dB min @ 1890 |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
|
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

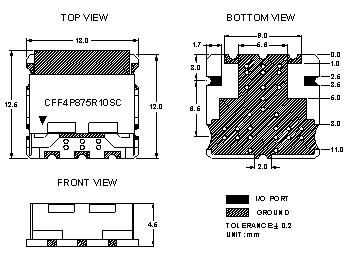

机械规格图

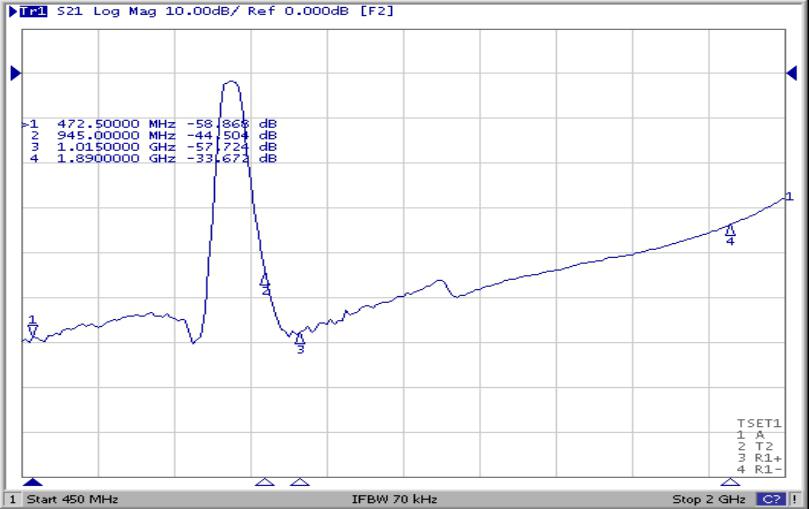

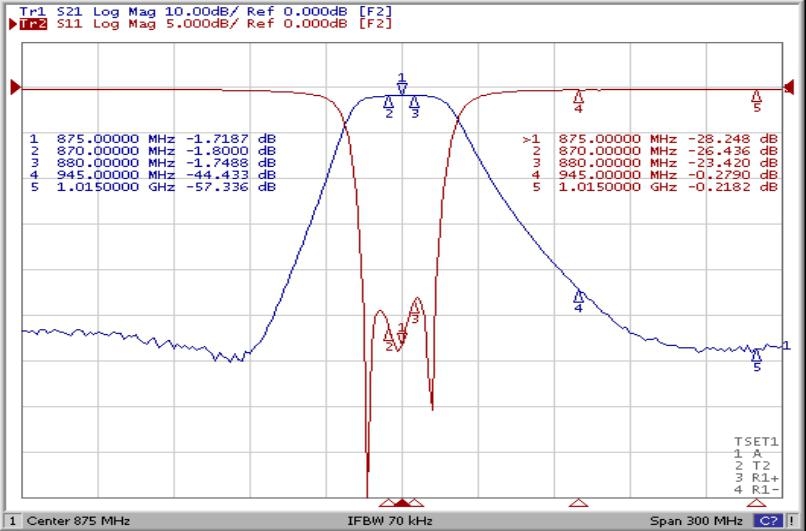

绘图数据

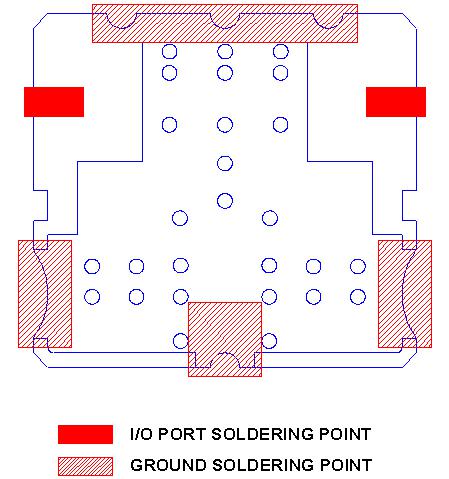

推荐的PC板模式
焊接条件
