Details description

CFK9D1440F1970R40FA

下载产品PDF

电气规格表

ITEMS

ANT >> Low

ANT >> High

UNIT

Center Frequency [fo]

1440.0

1970.0

MHz

Bandwidth [BW]

fo ±20.0 [1420.0~1460.0]

fo ±20.0 [1950.0~1990.0]

MHz

Insertion Loss in BW

3.0

3.0

dB max

Ripple in BW

0.5

0.5

dB max

Return Loss in BW

18.0

18.0

dB min

Attenuation

   £ Absolute Value

   R Relative  Value

55 dBc min. @ [1950~1990]

55 dBc min. @[1950~1990]

MHz

  dBc min. @ [    ~    ]

dBc min. @ [    ~    ]

MHz

 dBc min. @ [    ~    ]

dBc min. @ [    ~    ]

MHz

 dBc min. @ [    ~    ]

 dBc min. @ [    ~    ]

MHz

Group Delay Variation



ns max

Input Power

3.0

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃

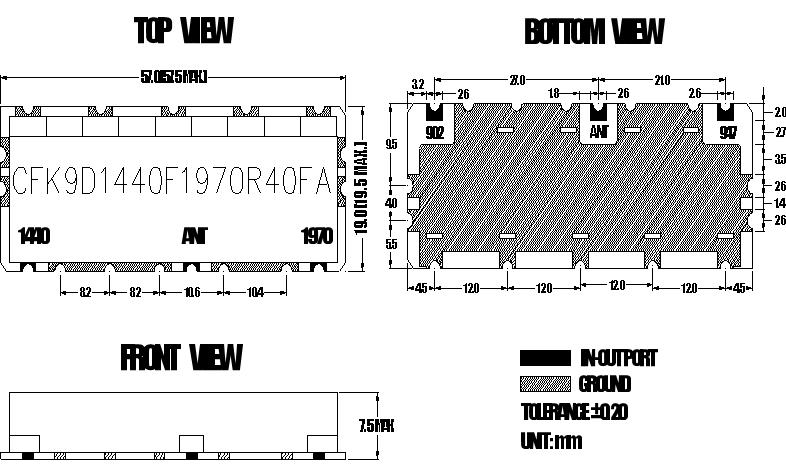

机械规格图

绘图数据

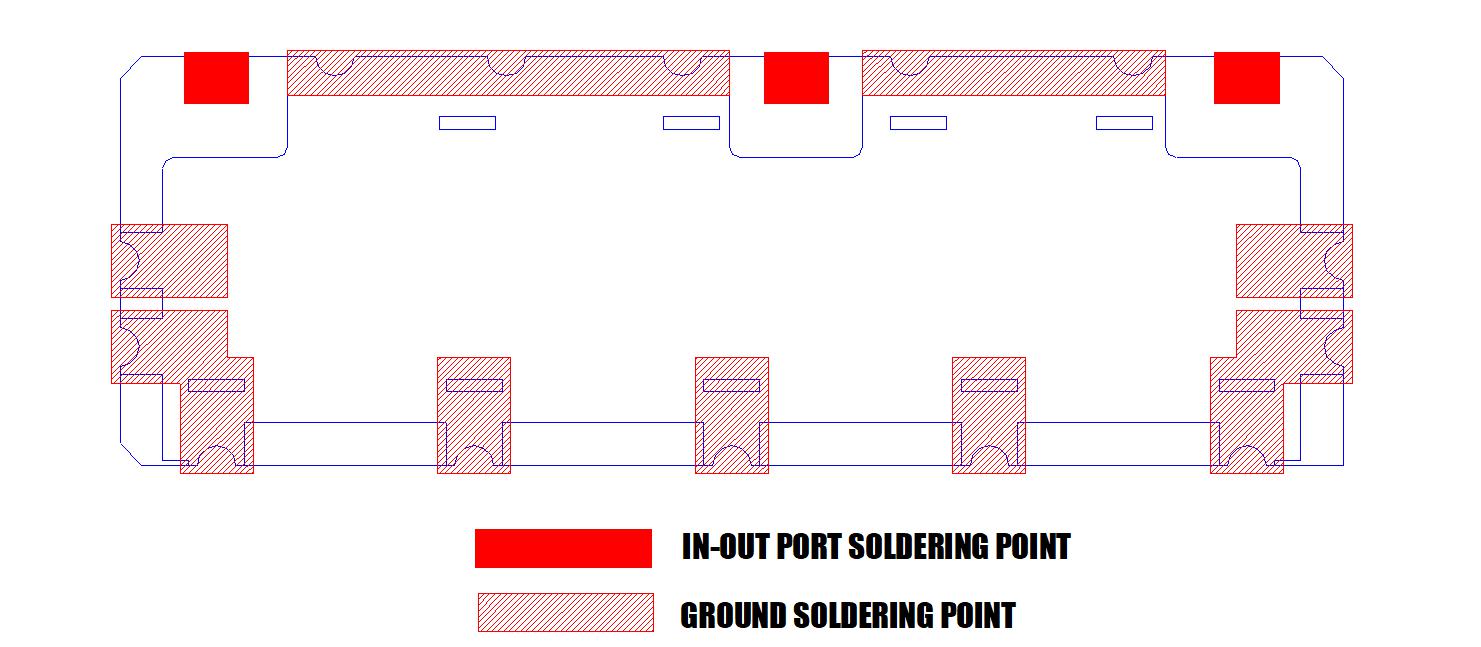

推荐的PC板模式
