CFN10P912F957N06FA
下载产品PDF
电气规格表
|
ITEMS |
ANT >> Low |
ANT >> High |
UNIT |
|
Center Frequency [fo] |
912.0 |
957.5 |
MHz |
|
Bandwidth [BW] |
fo ±3.0[909 ~915] |
fo ±3.0[954 ~960] |
MHz |
|
Insertion Loss in BW |
1.8 |
1.8 |
dB max |
|
Ripple in BW |
0.8 |
0.8 |
dB max |
|
Return Loss in BW |
16.0 |
16.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
60.0 dB min. @[954 ~ 960] |
60.0dB min. @[909 ~ 915] |
MHz |
|
dB min. @ [ ~ ] |
dB min. @ [ ~ ] |
MHz |
|
|
dB min. @ [ ~ ] |
dB min. @ [ ~ ] |
MHz |
|
|
dB min. @ [ ~ ] |
dB min. @ [ ~ ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
|
Input Power |
3.0 |
W max. |
|
|
In/Out Impedance |
50 Ω |
||
|
Operation Temperature Range |
-40℃ to +85℃ |
||
机械规格图
绘图数据

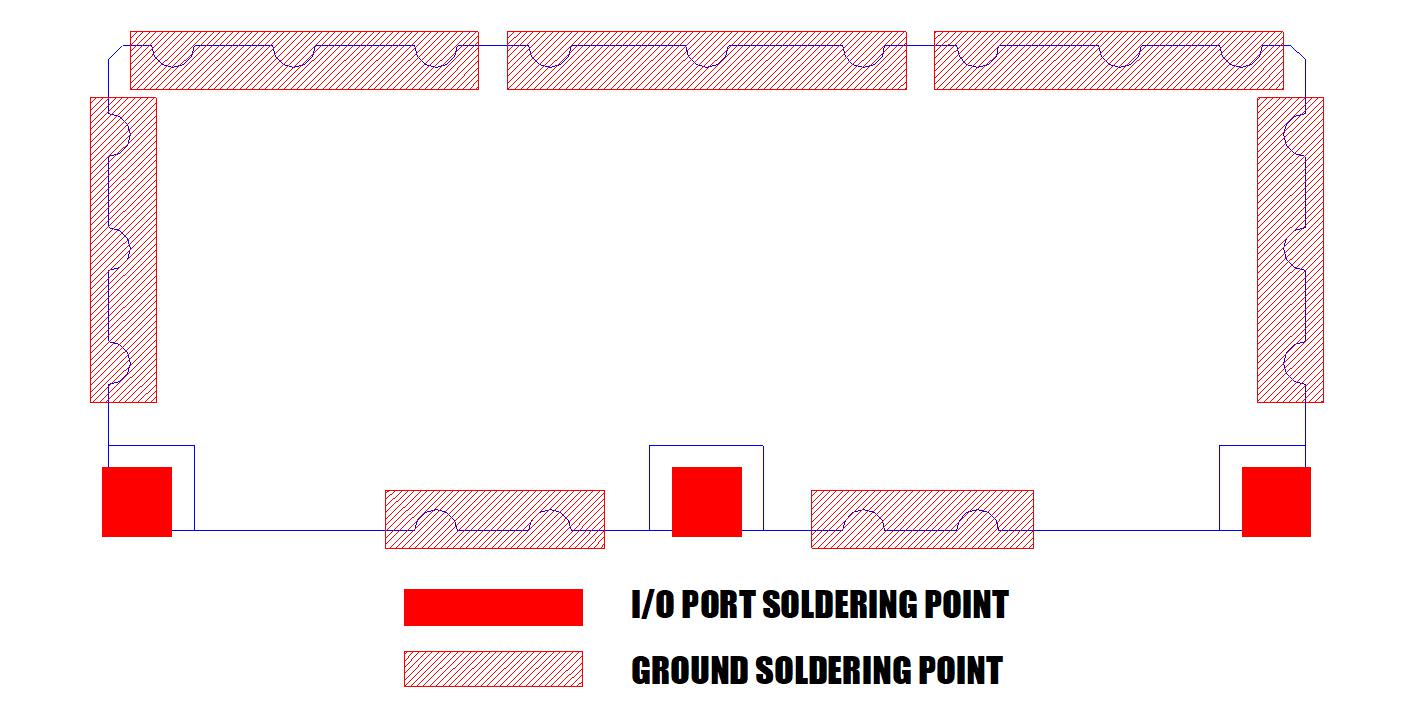

推荐的PC板模式
焊接条件
