Details description

CFN10P902R947N25FA

下载产品PDF

电气规格表

ITEMS

ANT >> Low

ANT >> High

UNIT

Center Frequency [fo]

902.5

947.5

MHz

Bandwidth [BW]

fo ±12.50[890.0 ~915.0]

fo ±12..50[935.0 ~960.0]

MHz

Insertion Loss in BW

1.5

1.5

dB max

Ripple in BW

1.0

1.0

dB max

Return Loss in BW





dB min

Attenuation

   R Absolute Value

   £ Relative  Value

50.0 dB min. @[935 ~960]

50.0 dB min. @[890 ~915]

MHz

    dB min. @ [   ~    ]

dB min. @ [   ~    ]

MHz

    dB min. @ [   ~    ]

dB min. @ [   ~    ]

MHz

    dB min. @ [   ~    ]

dB min. @ [   ~    ]

MHz

Group Delay Variation



ns max

Input Power

2.0

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃

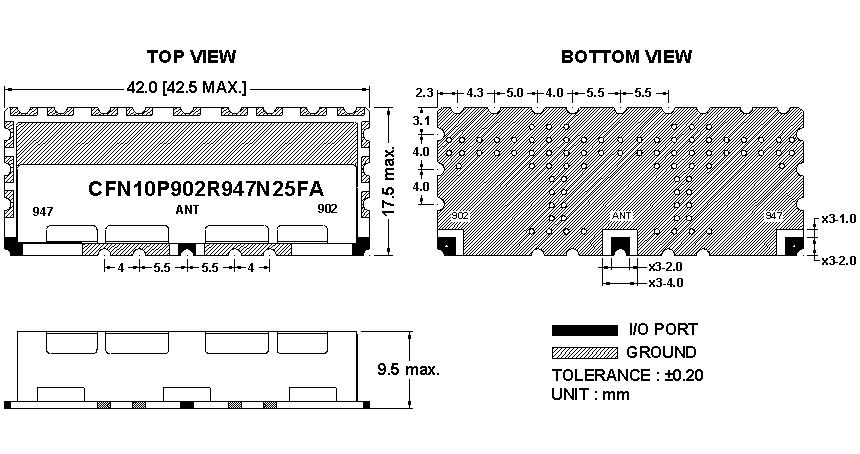

机械规格图

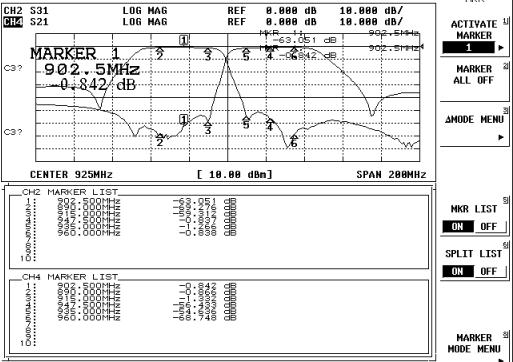

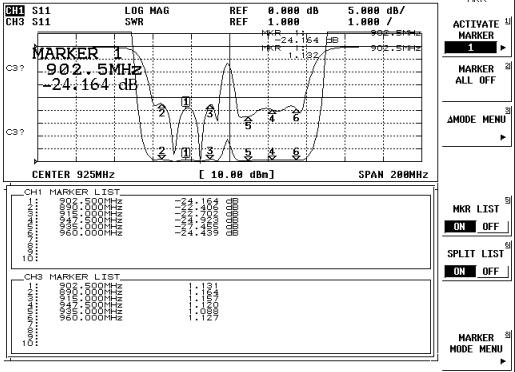

绘图数据

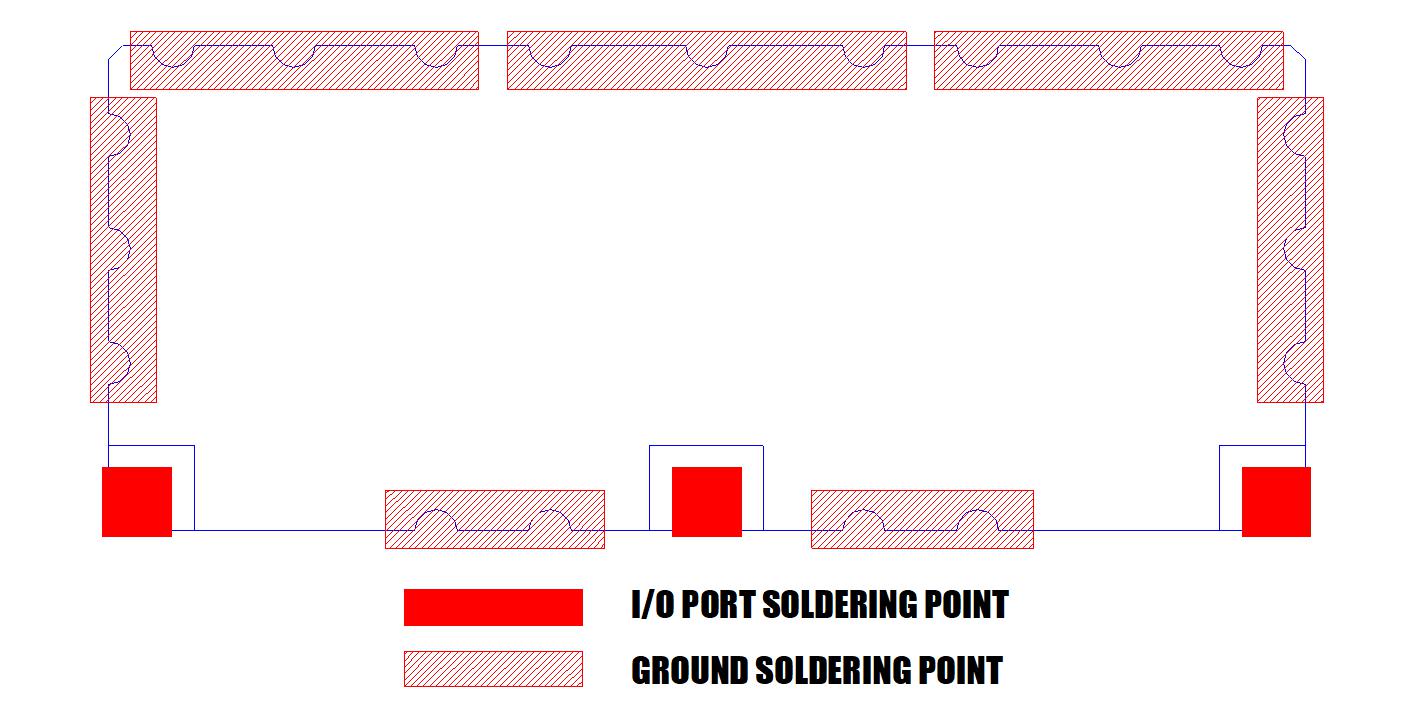

推荐的PC板模式

焊接条件
