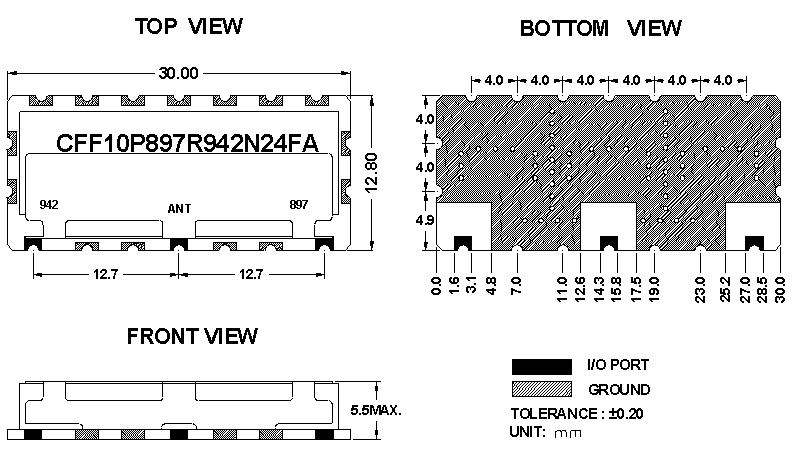

CFF10P897R942N24FA

ITEMS

ANT >> Low

ANT >> High

UNIT

Center Frequency [fo]

897.0

942.0

MHz

Bandwidth [BW]

fo ±12.0 [885.0~909.0]

fo ±12.0 [930.0~954.0]

MHz

Insertion Loss in BW

3.0

3.5

dB max

Ripple in BW

1.7

1.7

dB max

Return Loss in BW

13.0

13.0

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

45.0 dBmin.@ [930.0~954.0]

50.0dBmin.@[885.0~909.0]

MHz

    dBmin. @ [    ~    ]

   dBmin. @[    ~    ]

MHz

    dBmin. @ [    ~    ]

   dBmin. @[    ~    ]

MHz

    dBmin. @ [    ~    ]

   dBmin. @[    ~    ]

MHz

Group Delay Variation

ns max

Input Power

3.0

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃
