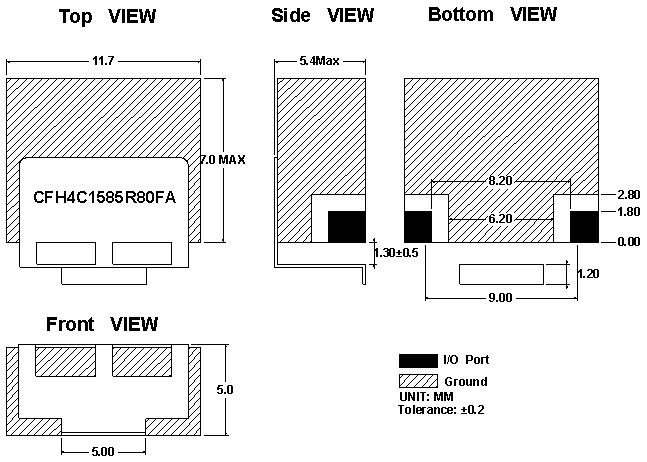

CFH4C1585R80FA

ITEMS

SPEC

UNIT

Center Frequency [fo]

1585.0

MHz

Bandwidth [BW]

fo ±40.0 [1545.0 ~ 1625.0]

MHz

Insertion Loss in BW

0.6

dB max

Ripple in BW

0.5

dB max

Return Loss in BW

15.0

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

25.0 dB min @ fo -400.0   [1185.0 ~    ]

MHz

25.0 dB min @ fo +400.0   [1985.0 ~    ]

MHz

dB min @ fo ±   [      &      ]

MHz

dB min @ fo ±   [      &      ]

MHz

Group Delay Variation

ns max

Input Power

1.0

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃  to  +85℃
