CFH4C1240R50FA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
1240.0 |
MHz |
|
Bandwidth [BW] |
fo ±25.0 [1215.0 ~ 1265.0] |
MHz |
|
Insertion Loss in BW |
2.0 |
dB max |
|
Ripple in BW |
0.5 @ fo ±13.0 |
dB max |
|
Return Loss in BW |
15.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
40.0 dB min @ fo ± 100.0 [1140.0 ~ ] |
MHz |
|
48.0 dB min @ fo ± 150.0 [1390.0 ~ ] |
MHz |
|
|
50.0 dB min @ fo ± [1575.0 ~ ] |
MHz |
|
|
50.0 dB min @ fo ± [1900.0 ~ ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
1.0 |
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

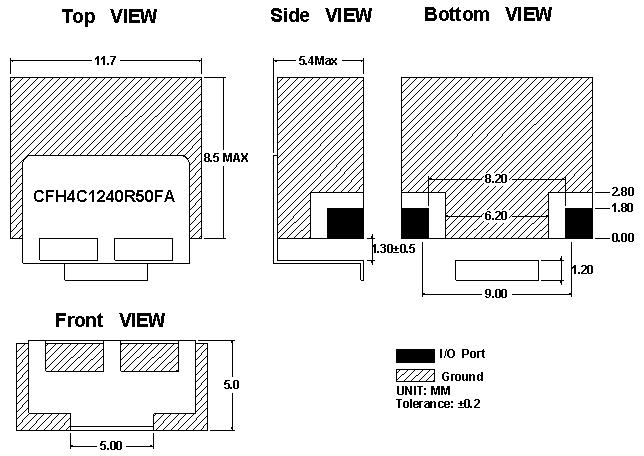

机械规格图

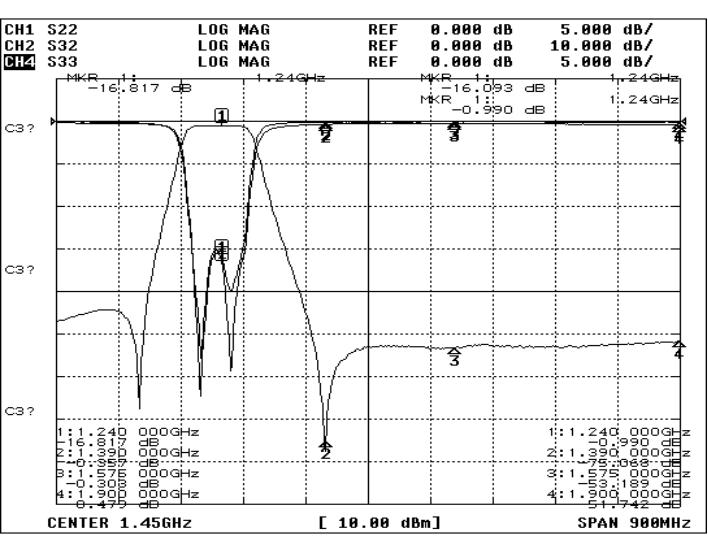

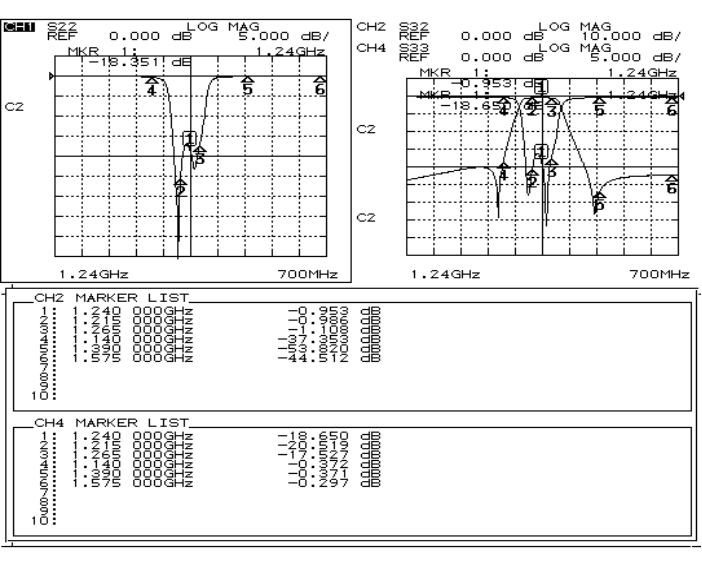

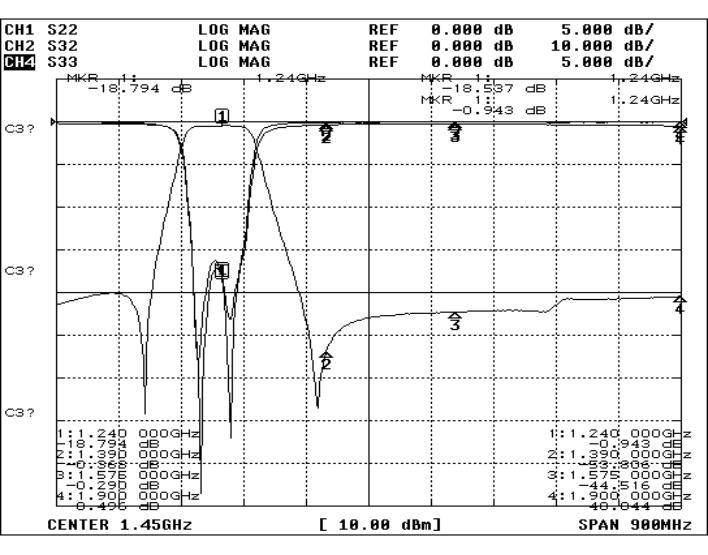

绘图数据
推荐的PC板模式

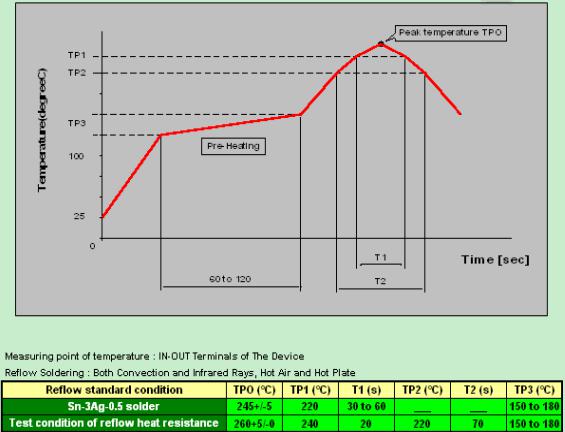

焊接条件
