Details description

CFD4A2140R60SA

下载产品PDF

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

2140.0

MHz

Bandwidth [BW]

fo ±30.0 [2110.0~2170.0]

MHz

Insertion Loss in BW

2.2

dB max

Ripple in BW

0.6

dB max

Return Loss in BW

15.0

dB min

Attenuation

   £ Absolute Value

   R Relative  Value

40.0 dBc min.  @ fo ± 200[1940.0  &2340.0]

MHz

35.0 dBc min.  @ fo ±   [4280.0 & ]

MHz

    dBc min.  @ fo ±      [ & ]

MHz

   dBc min.  @ fo ±      [ & ]

MHz

Group Delay Variation



ns max

Input Power



W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃

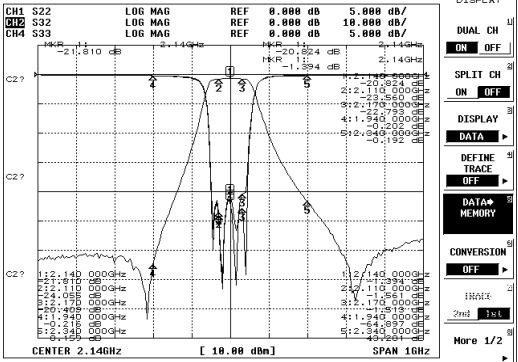

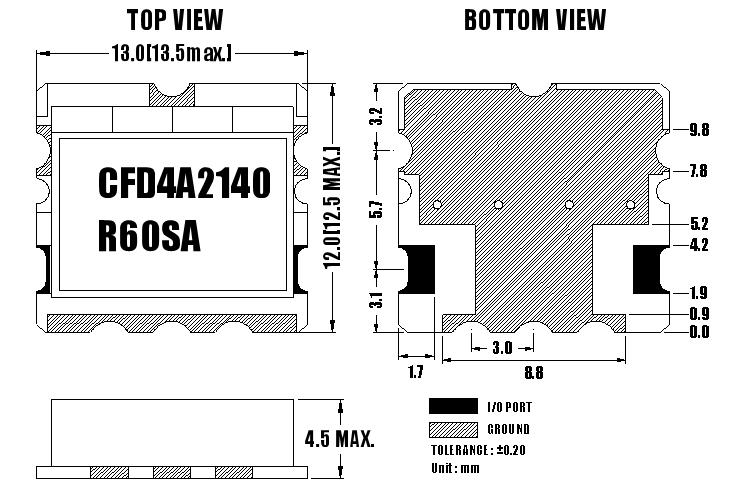

机械规格图

绘图数据

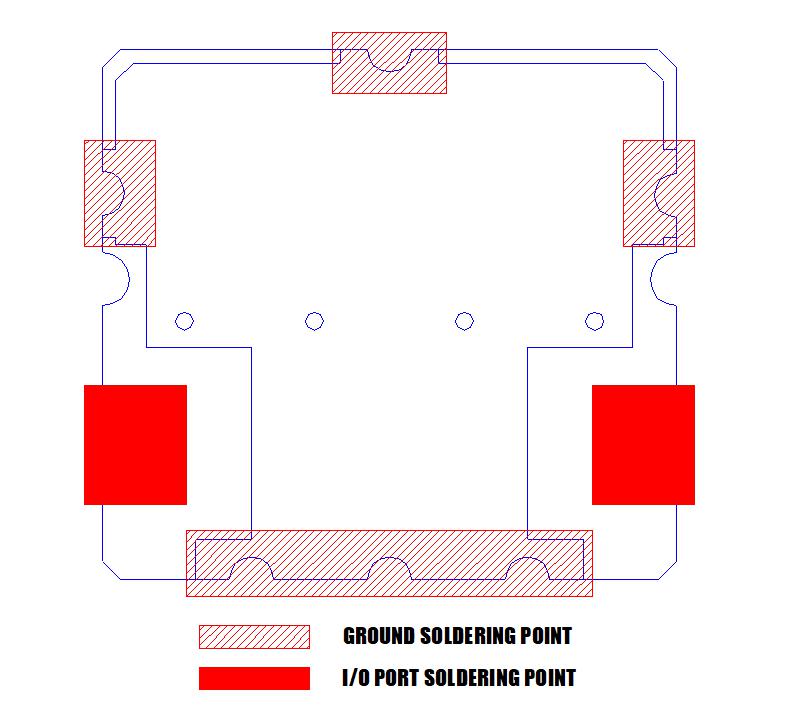

推荐的PC板模式

焊接条件
