CFD4A1950R60SA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
1950.0 |
MHz |
|
Bandwidth [BW] |
fo ±30.0 [1920~1980] |
MHz |
|
Insertion Loss in BW |
2.0 |
dB max |
|
Ripple in BW |
0.5 |
dB max |
|
Return Loss in BW |
15.0 |
dB min |
|
Attenuation £ Absolute Value R Relative Value |
40.0 dBc min. @ fo－200[1750] |
MHz |
|
40.0 dBc min. @ fo＋200[2150] |
MHz |
|
|
40.0 dBc min. @ fo 2 fo [3900] |
MHz |
|
|
dB min. @ fo ± [ & ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
|
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

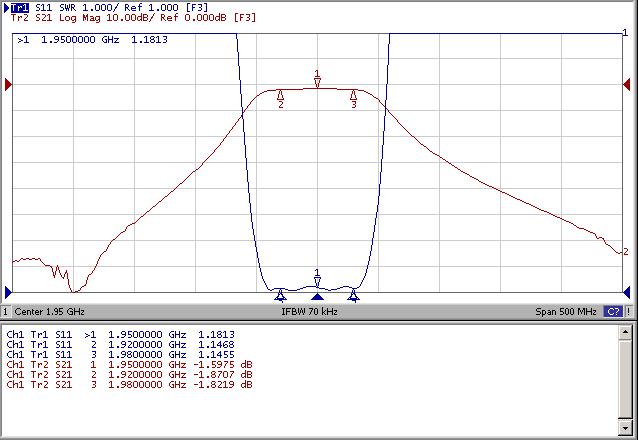

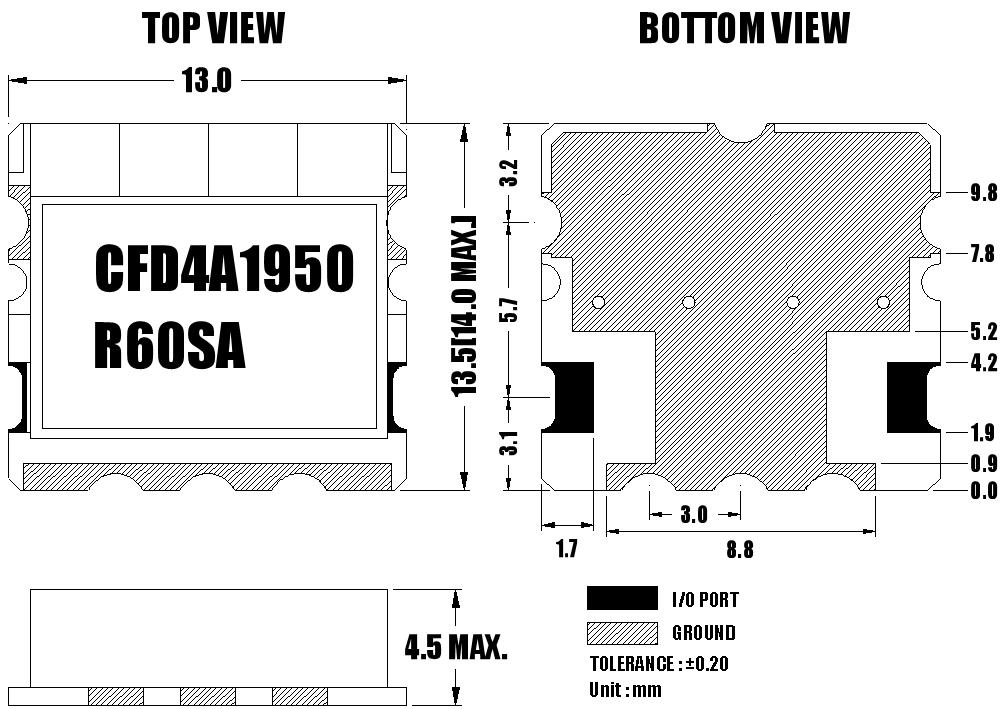

机械规格图
绘图数据

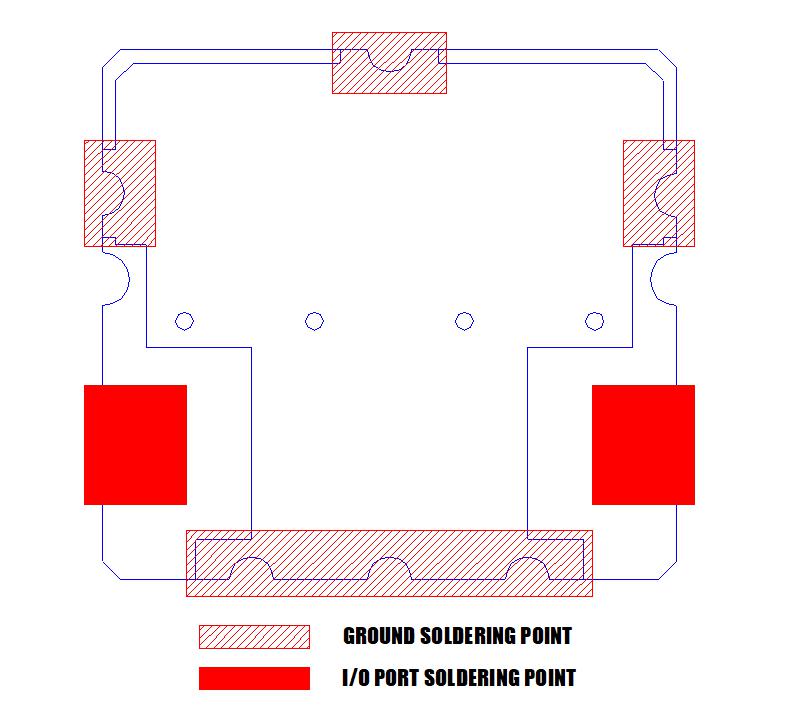

推荐的PC板模式
