CFD4A957R07SA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
957.0 |
MHz |
|
Bandwidth [BW] |
fo ±3.5 [953.5~960.5] |
MHz |
|
Insertion Loss in BW |
3.0 |
dB max |
|
Ripple in BW |
0.5 |
dB max |
|
Return Loss in BW |
20.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
30.0 dB min. @ fo ± 70.0 [887.0 &1027.0 ] |
MHz |
|
dB min. @ fo ± [ & ] |
MHz |
|
|
dB min. @ fo ± [ & ] |
MHz |
|
|
dB min. @ fo ± [ & ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
|
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

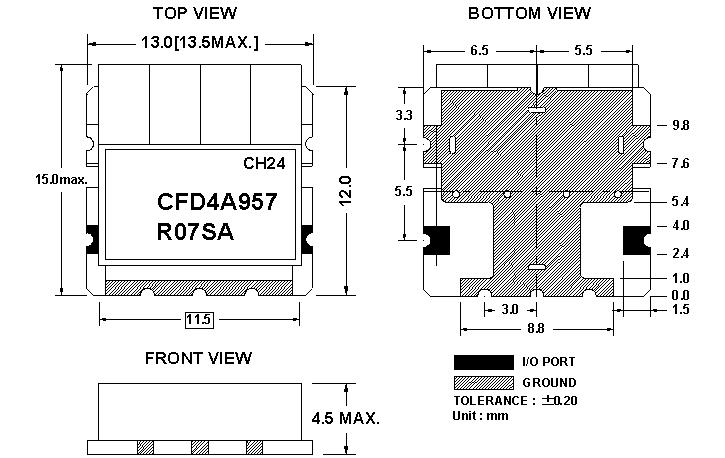

机械规格图

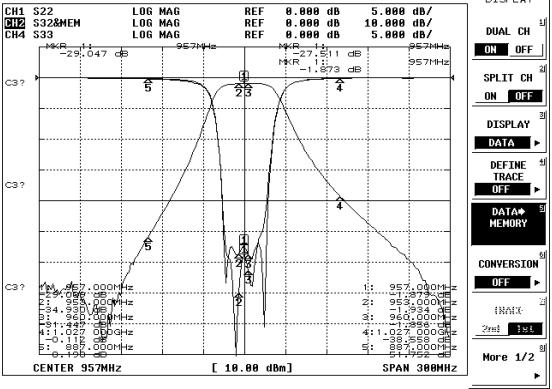

绘图数据
推荐的PC板模式
焊接条件
