CFD4A942R36SA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
942.0 |
MHz |
|
Bandwidth [BW] |
fo ±18.0 [924.5~960.5] |
MHz |
|
Insertion Loss in BW |
3.0 |
dB max |
|
Ripple in BW |
1.0 |
dB max |
|
Return Loss in BW |
15.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
70.0 dBc min. @ fo ± [300.0 ~ 800.0 ] |
MHz |
|
70.0 dBc min. @ fo ± [822.0 & ] |
MHz |
|
|
30.0 dBc min. @ fo ± [1000.0 & ] |
MHz |
|
|
7.0 dBc min. @ fo ± [915 & ] |
MHz |
|
|
1.5 dBc min. @ fo ± [920 & ] |
MHz |
|
|
30.0 dBc min. @ fo ± [1050 ~ ] |
MHz |
|
|
30.0 dBc min. @ fo ± [ & 3000.0] |
MHz |
|
|
Group Delay Variation |
|
MHz |
|
Input Power |
|
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

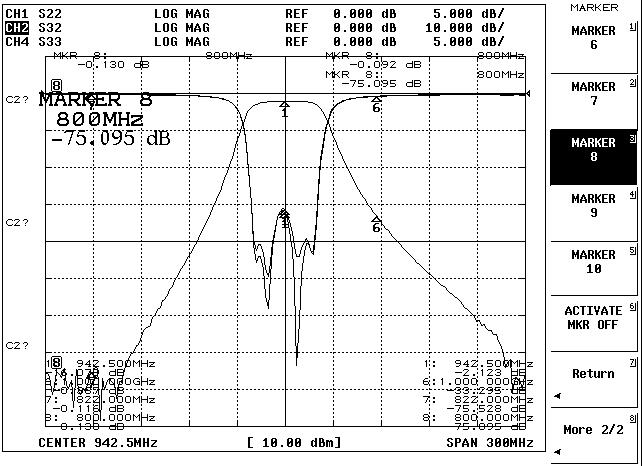

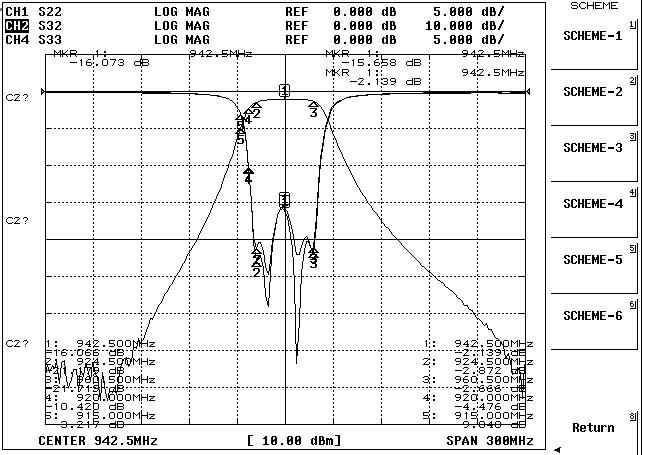

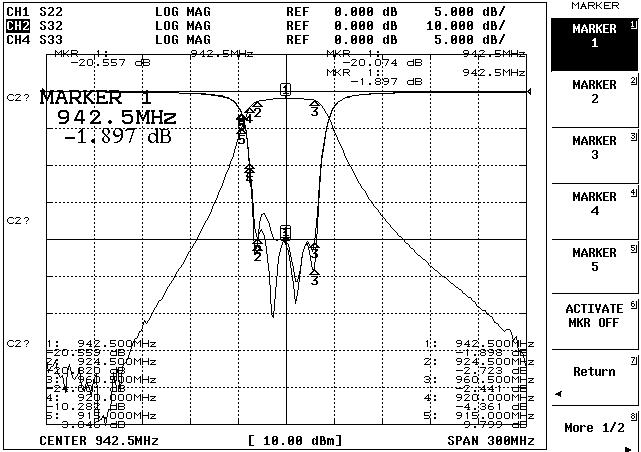

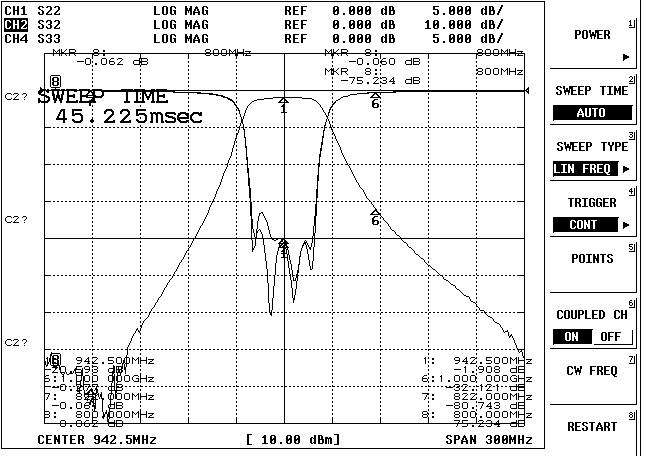

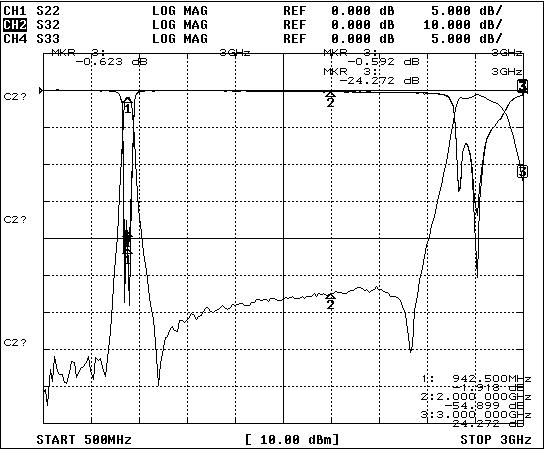

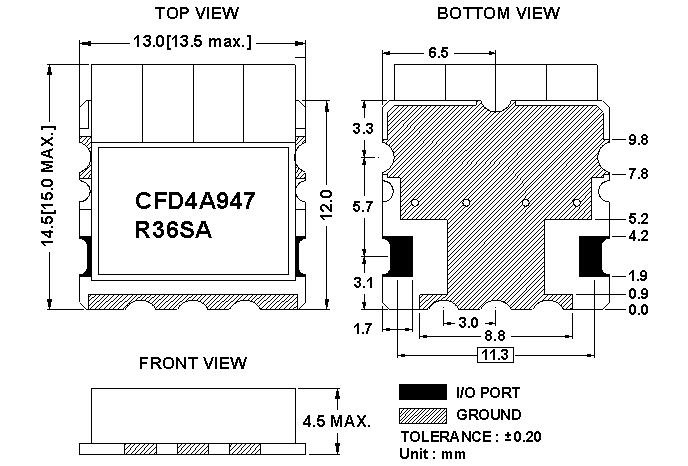

机械规格图
