Details description

CFN10P704N12FA

下载产品PDF

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

704.0

MHz

Bandwidth [BW]-1.0dB

fo ±6.0  [698.0  ~  710.0]

MHz

Bandwidth [BW]-3.0dB

fo ±12.5 max  [691.5  ~  716.5]

MHz

Insertion Loss in fo

3.0

dB max

Ripple in BW

2.0

dB max

Return Loss in BW

15.0

dB min

Attenuation

   RAbsolute Value

   £Relative  Value

50.0 dB min.  @ fo ±   [728.0  ~ 740.0 ]

MHz

dB min @ fo ±      [      &     ]

MHz

dB min @ fo ±      [      &     ]

MHz

dB min @ fo ±      [      &     ]

MHz

Group Delay Variation



ns max

Input Power

3

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃  to  +85℃

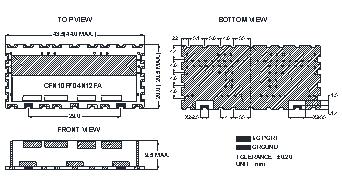

机械规格图

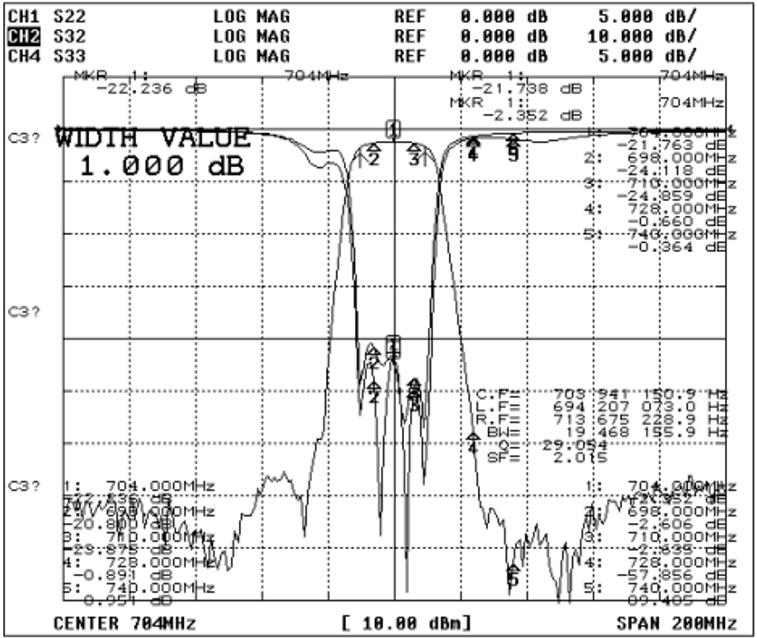

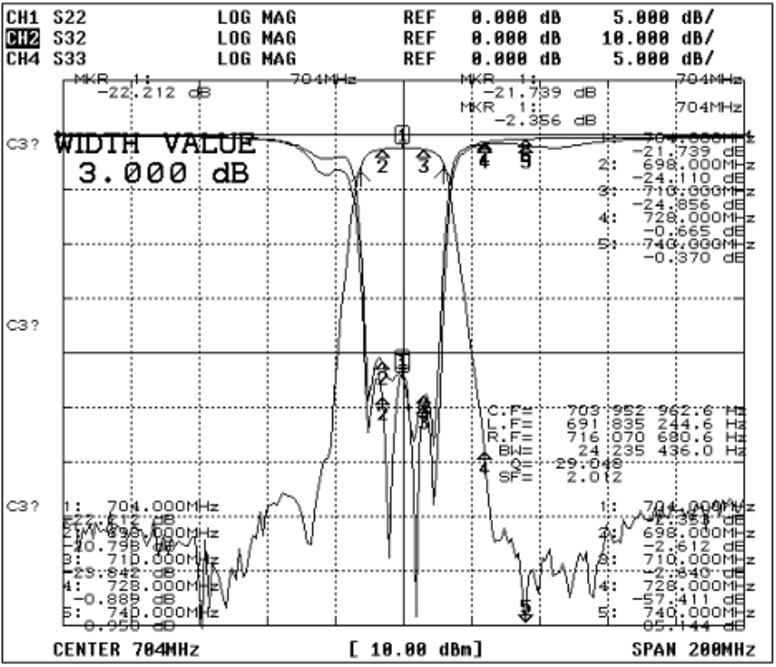

绘图数据



推荐的PC板模式

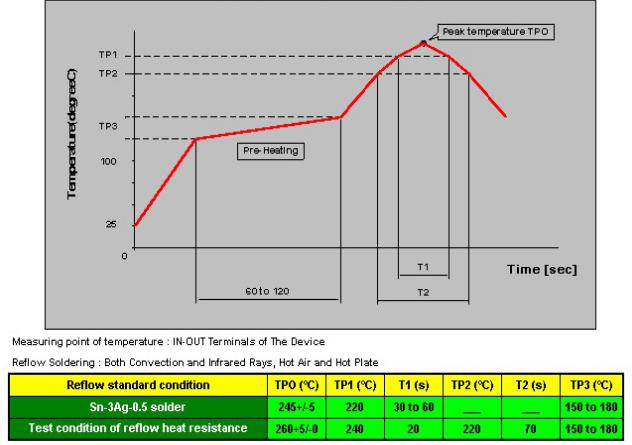

焊接条件
