CFF4P5290R100SA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
5290.0 |
MHz |
|
Bandwidth [BW] |
fo ±50.0[5240.0~5340.0] |
MHz |
|
Insertion Loss in BW |
2.0 |
dB max |
|
Ripple in BW |
0.2 |
dB max |
|
Return Loss in BW |
|
dB min |
|
Attenuation R Absolute Value £ Relative Value |
45 dB min. @ fo ± 5690 |
MHz |
|
dB min. @ fo ± |
MHz |
|
|
dB min. @ fo ± |
MHz |
|
|
dB min. @ fo ± |
MHz |
|
|
|
|
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
|
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

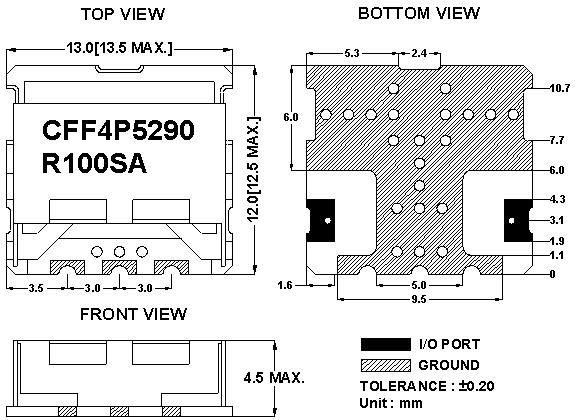

机械规格图

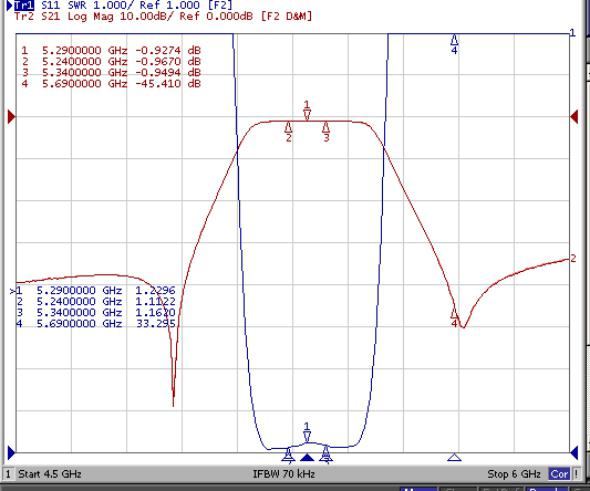

绘图数据

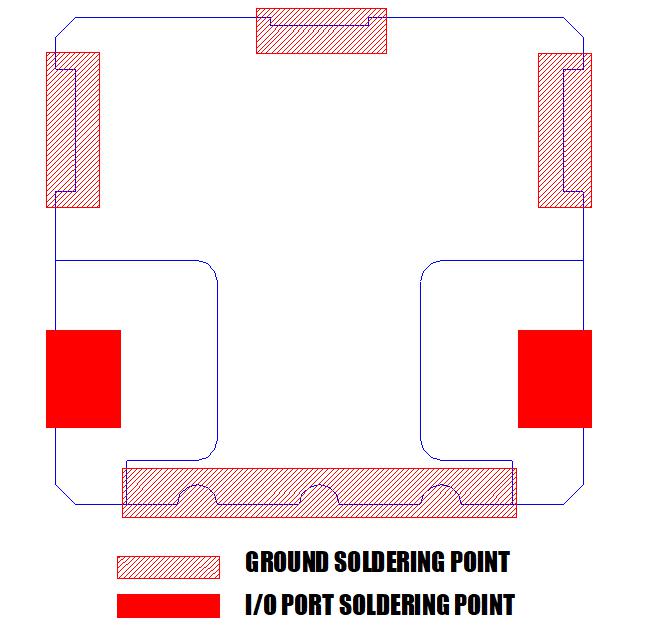

推荐的PC板模式
焊接条件
