CFN10P897F942N24FA
下载产品PDF
电气规格表
|
ITEMS |
ANT >> Low |
ANT >> High |
UNIT |
|
Center Frequency [fo] |
897.0 |
942.0 |
MHz |
|
Bandwidth [BW] |
fo ±12.0 |
fo ±12.0 |
MHz |
|
Insertion Loss in BW |
2.3 |
2.0 |
dB max |
|
Ripple in BW |
1.2 |
1.0 |
dB max |
|
Return Loss in BW |
|
|
dB min |
|
Attenuation R Absolute Value £ Relative Value |
35.0 dB min. @ DC-715 |
35.0 dB min. @ DC-760 |
MHz |
|
55.0 dB min. @ [ 930-954 ] |
55.0 dB min. @ [ 885-909 ] |
MHz |
|
|
dBmin. @ [ ~ ] |
dB min. @ [ ~ ] |
MHz |
|
|
dBmin. @ [ ~ ] |
dB min. @ [ ~ ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
|
Input Power |
3.0 |
W max. |
|
|
In/Out Impedance |
50 Ω |
||
|
Operation Temperature Range |
-40℃ to +85℃ |
||

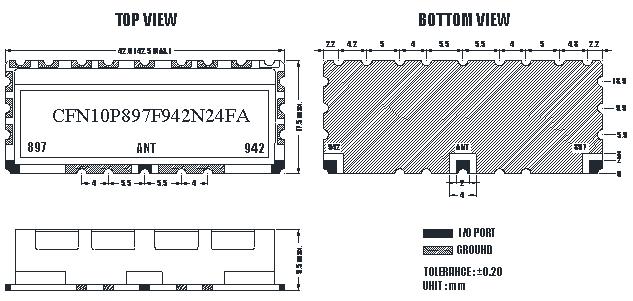

机械规格图

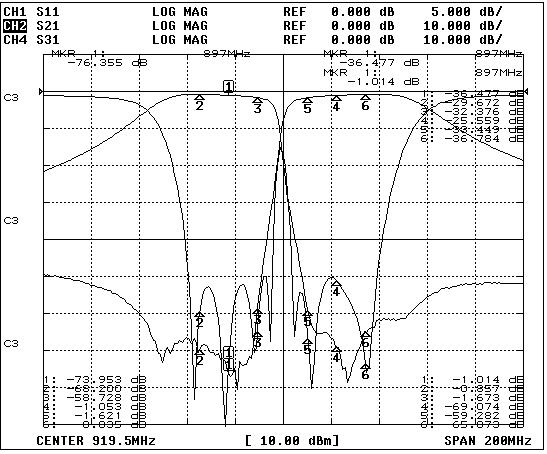

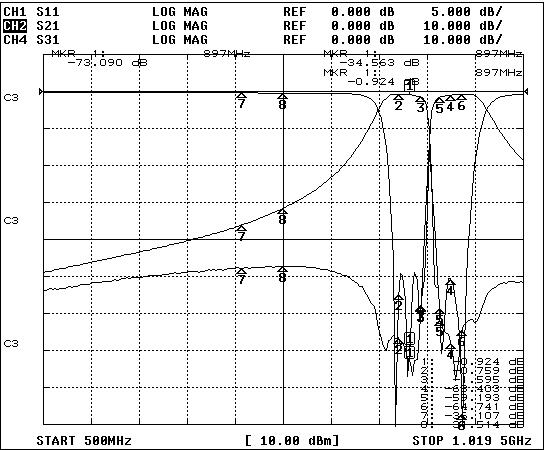

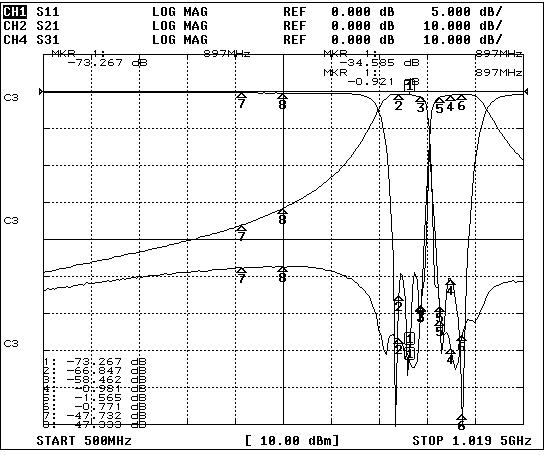

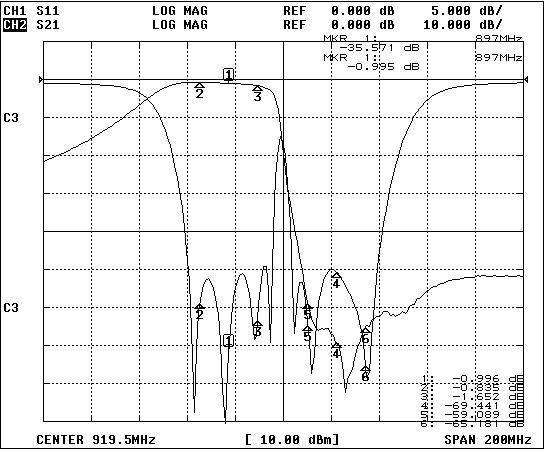

绘图数据
推荐的PC板模式
焊接条件
