CFK8P957N06FA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
957.0 |
MHz |
|
Bandwidth [BW] |
fo±3.0 [954 ~960 ] |
MHz |
|
Insertion Loss in BW |
7.0 |
dB max |
|
Ripple in BW |
2.0 |
dB max |
|
Return Loss in BW |
|
dB min |
|
Attenuation £ Absolute Value R Relative Value |
13.0 dBc min. @ fo ± 8.0 [949.0 & 965.0 ] |
MHz |
|
55.0 dBc min. @ fo ± 22.5[934.5 &979.5 ] |
MHz |
|
|
55.0 dBc min. @ fo ± [909.0 & 915.0 ] |
MHz |
|
|
dB min @ fo ± [ ~ ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
2 |
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

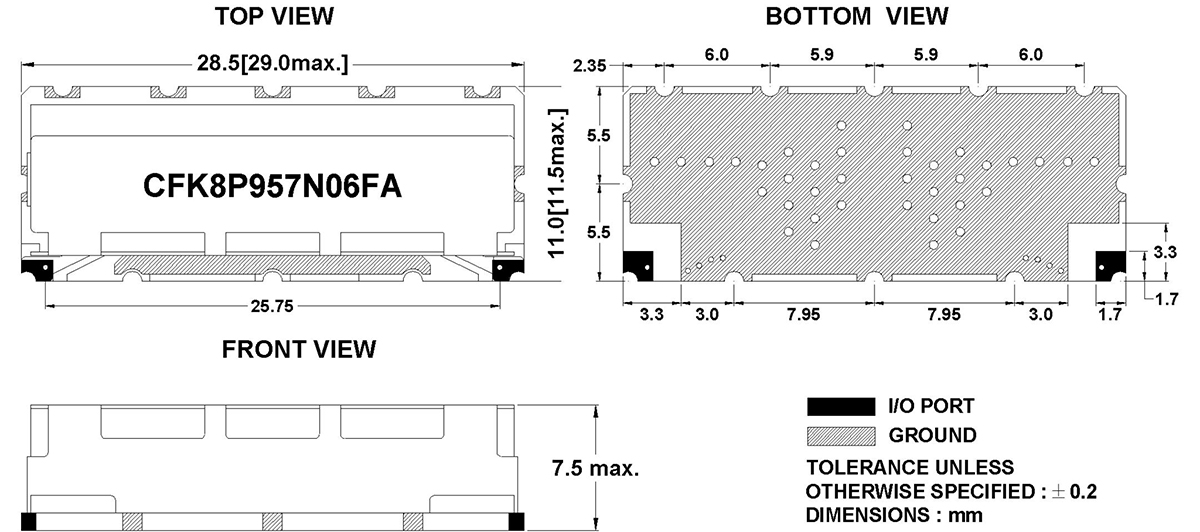

机械规格图

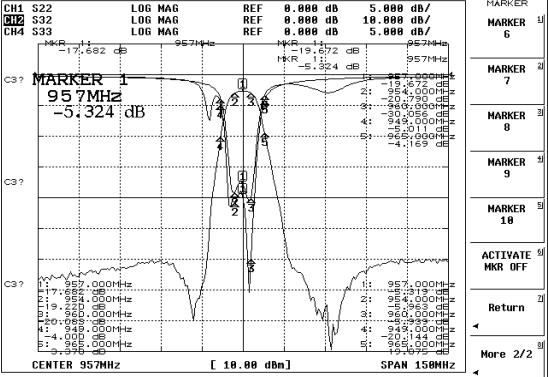

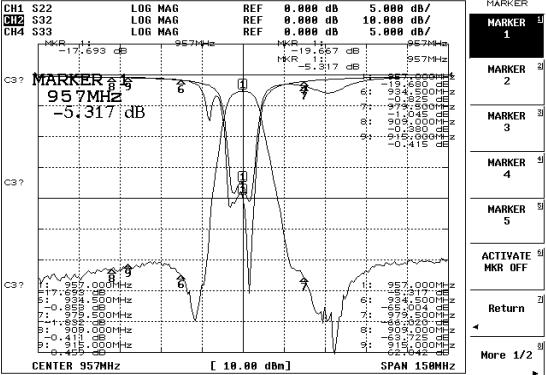

绘图数据
推荐的PC板模式
焊接条件
