Details description

CFF4P897R35SB

下载产品PDF

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

897.0

MHz

Bandwidth [BW]

fo±17.5 [ 885 ~915 ]

MHz

Insertion Loss in BW

3.0

dB max

Ripple in BW

0.8

dB max

Return Loss in BW

18.0

dB min

Attenuation

   £ Absolute Value

   R Relative  Value

55.0 dBc min. @  fo ±  [816.0 &   ]

MHz

45.0 dBc min.  @ fo ±  [839.0 &  ]

MHz

  dB min @ fo ±    [    &   ]

MHz

dB min @ fo ±   [     ~   ]

MHz

Group Delay Variation



ns max

Input Power

2

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40to +85

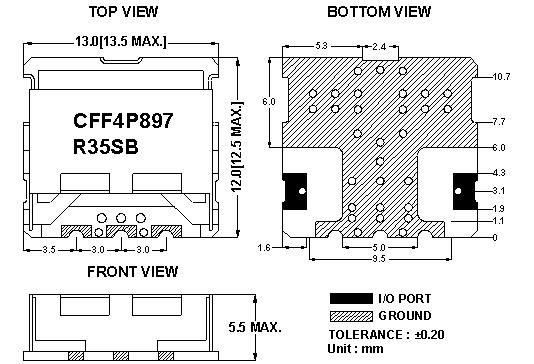

机械规格图

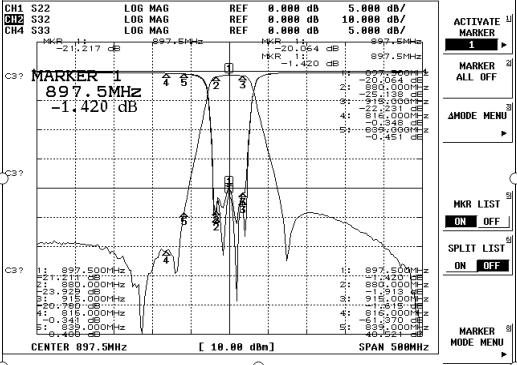

绘图数据

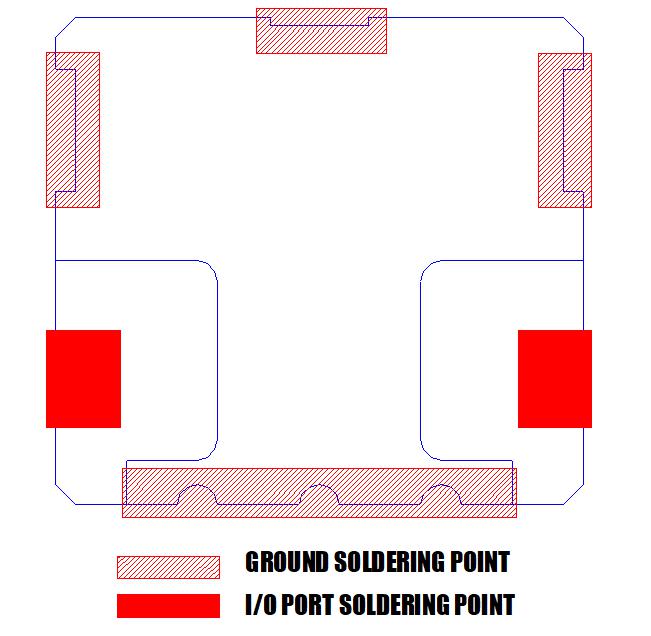

推荐的PC板模式

焊接条件
