Details description

CFF4P897R24SA

下载产品PDF

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

897.0

MHz

Bandwidth [BW]

fo±12 [ 885.0 ~909.0 ]

MHz

Insertion Loss in BW

2.5

dB max

Ripple in BW

1.0

dB max

Return Loss in BW

18.0

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

17.0 dB min.  @ fo ±   [930.0~954.0 ]

MHz

  dB min @ fo ±    [    &   ]

MHz

  dB min @ fo ±    [    &   ]

MHz

dB min @ fo ±   [     ~   ]

MHz

Group Delay Variation



ns max

Input Power

2

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40to +85

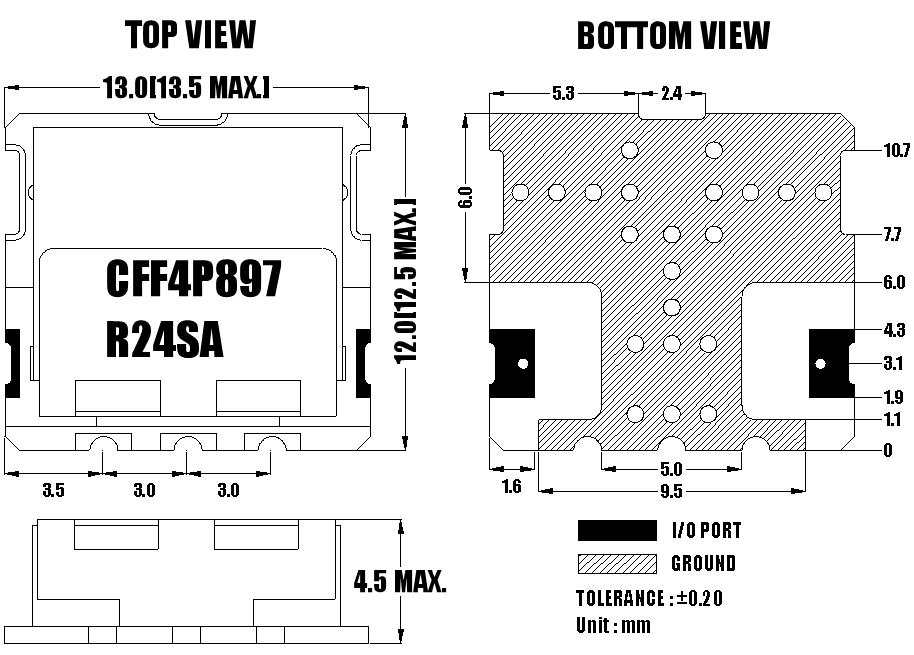

机械规格图

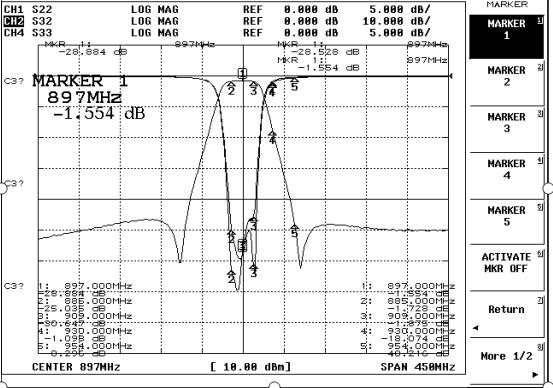

绘图数据

推荐的PC板模式

焊接条件
