CFN8P1950N60FA
下载产品PDF

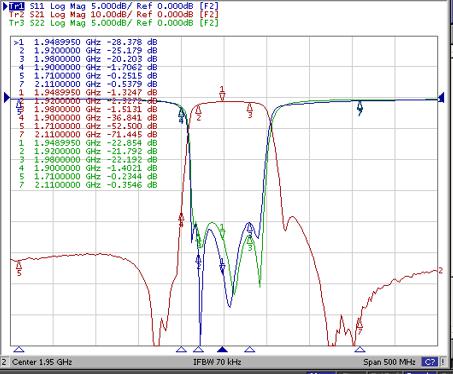

电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
1950 |
MHz |
|
Bandwidth [BW] |
fo ±30 [1920~1980] |
MHz |
|
Insertion Loss in BW |
2.8 |
dB max |
|
Ripple in BW |
1.2dB |
dB max |
|
Return Loss in BW |
18.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
30.0 dB min @ DC~1710 |
MHz |
|
45.0 dB min @ 1710~1880 |
MHz |
|
|
33.0 dB min @ 1900 |
MHz |
|
|
50.0 dB min @ 2110~2170 |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
2 |
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

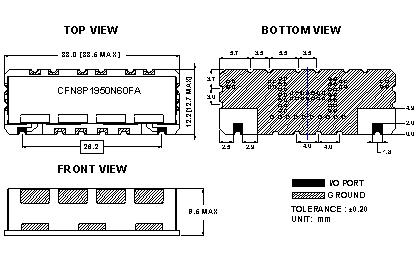

机械规格图
绘图数据

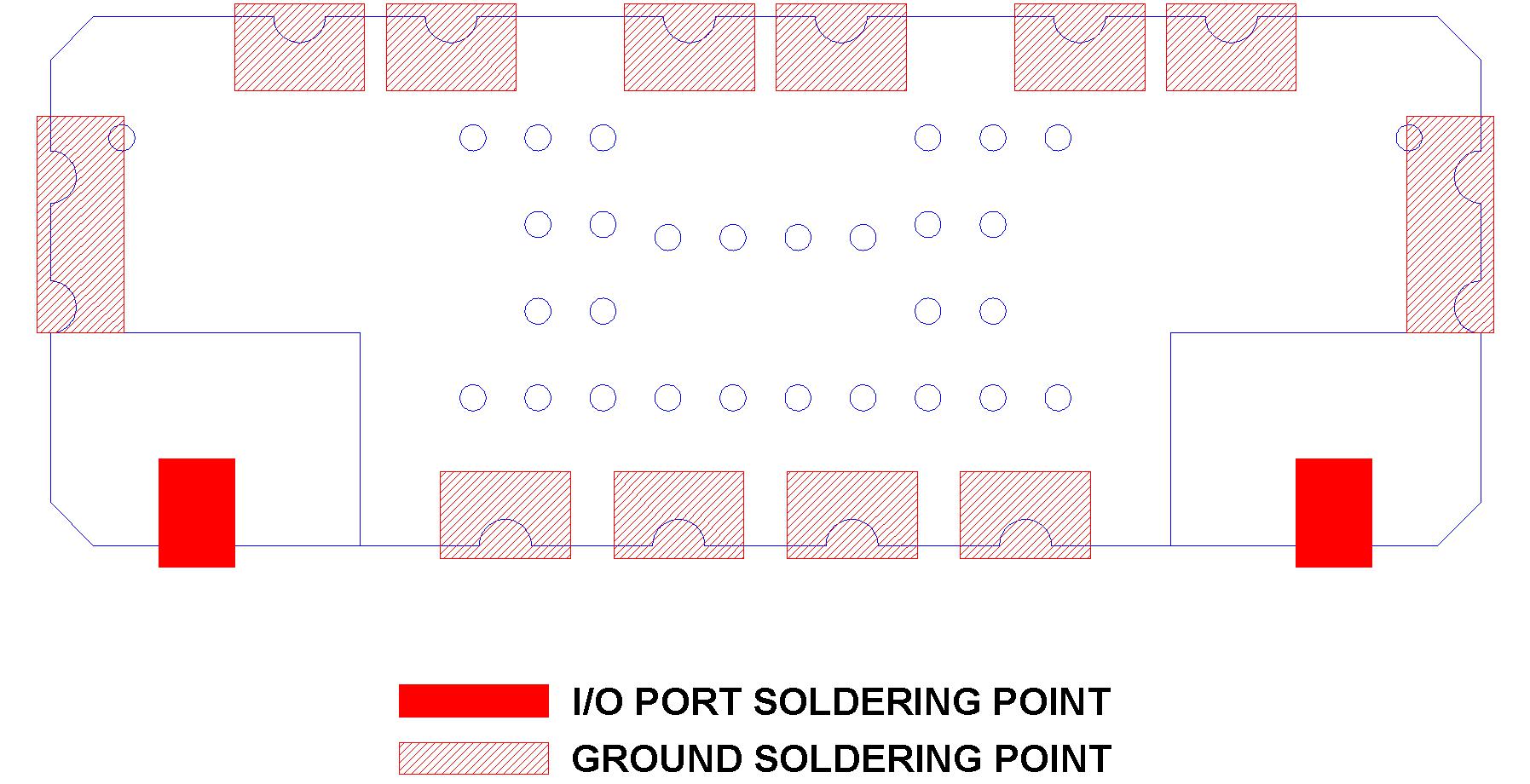

推荐的PC板模式
焊接条件
