CFK9D1797R2045N125-220FA
下载产品PDF

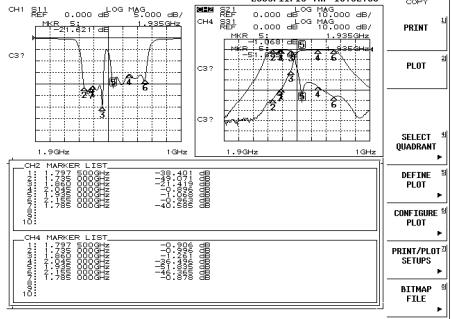

电气规格表
|
ITEMS |
ANT >> Low |
ANT >> High |
UNIT |
|
Center Frequency [fo] |
1797.5 |
2045.0 |
MHz |
|
Bandwidth [BW] |
fo ±62.5 [1735.0~1860.0] |
fo ±110.0 [1935.0~2155.0] |
MHz |
|
Insertion Loss in BW |
2.0 |
2.0 |
dB max |
|
Ripple in BW |
1.0 |
1.0 |
dB max |
|
Return Loss in BW |
15.0 |
15.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
40 dBmin. @ [1935.0~ ] |
40dBmin.@ [1785.0~ ] |
MHz |
|
dBmin. @ [ ~ ] |
dBmin. @ [ ~ ] |
MHz |
|
|
dBmin. @ [ ~ ] |
dBmin. @ [ ~ ] |
MHz |
|
|
dBmin. @ [ ~ ] |
dBmin. @ [ ~ ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
|
Input Power |
3.0 |
W max. |
|
|
In/Out Impedance |
50 Ω |
||
|
Operation Temperature Range |
-40℃ to +85℃ |
||

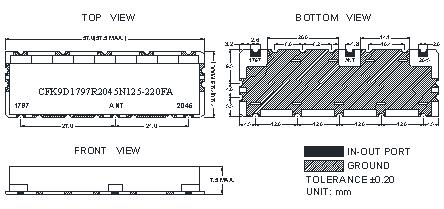

机械规格图
