CFD6D1220R1568R130-90FA
下载产品PDF
电气规格表
|
ITEMS |
ANT >> Low |
ANT >> High |
UNIT |
|
Center Frequency [fo] |
1220 |
1586.5 |
MHz |
|
Bandwidth [BW] |
fo ±65 [1155.0~1285.0] |
fo ±45.0 [1523.5~1613.5] |
MHz |
|
Insertion Loss in BW |
1.5 |
2.0 |
dB max |
|
Ripple in BW |
0.5 |
0.5 |
dB max |
|
Return Loss in BW |
15.0 |
15.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
40 dBmin.@[1523.5~1613.5] |
40 dBmin.@[1155~1285] |
MHz |
|
dBmin. @ [ ~ ] |
dBmin. @ [ ~ ] |
MHz |
|
|
Bmin. @ [ ~ ] |
Bmin. @ [ ~ ] |
MHz |
|
|
dBmin. @ [ ~ ] |
dBmin. @ [ ~ ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
|
Input Power |
3.0 |
W max. |
|
|
In/Out Impedance |
50 Ω |
||
|
Operation Temperature Range |
-40℃ to +85℃ |
||

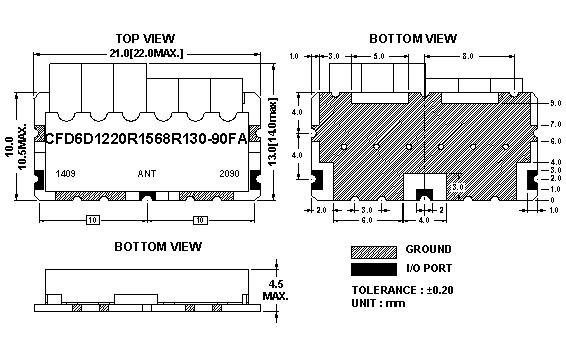

机械规格图

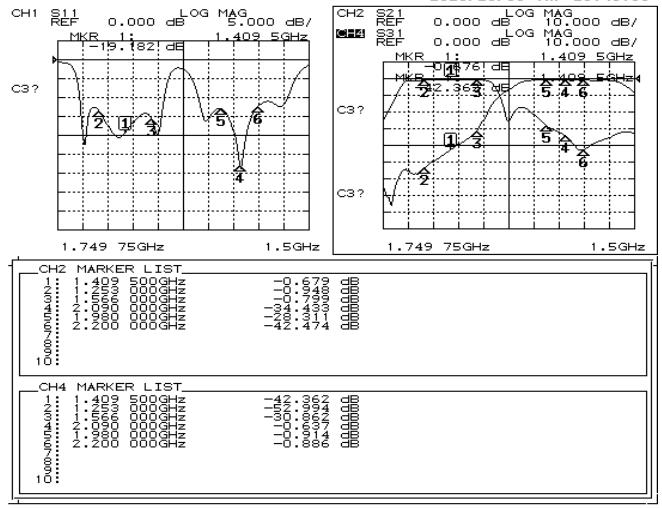

绘图数据
推荐的PC板模式
焊接条件
