CFF8D836F1882R25-65FA
下载产品PDF
电气规格表
|
ITEMS |
ANT>>LOW |
ANT>>High |
UNIT |
|
Center Frequency [fo] |
881.5 |
1962.5 |
MHz |
|
Bandwidth [BW] |
fo ±12.5 [869 ~ 894 ] |
fo ±32.5 [1930~1995] |
MHz |
|
Insertion Loss in BW |
2.5 |
2.5 |
dB max |
|
Ripple in BW |
0.5 |
0.5 |
dB max |
|
Return Loss in BW R ANT Port |
|
|
dB min |
|
VSW Rin BW R ALL Port |
1.5 |
1.5 |
max |
|
Attenuation R Absolute Value £ Relative Value |
45dB min @ fo ± [1930 ~1995] |
45dB min @ fo ± [869 ~894] |
MHz |
|
dB min @ fo ± [ ~ ] |
dB min @ fo ± [ ~ ] |
MHz |
|
|
dB min @ fo ± [ ~ ] |
dB min @ fo ± [ ~ ] |
MHz |
|
|
dB min @ fo ± [ ~ ] |
dB min @ fo ± [ ~ ] |
MHz |
|
|
Isolations |
dB min@[ ~ ] |
MHz |
|
|
dB min@[ ~ ] |
MHz |
||
|
Input Power |
3 |
W max. |
|
|
In/Out Impedance |
50 Ω |
||
|
Operation Temperature Range |
-40℃ to +85℃ |
||

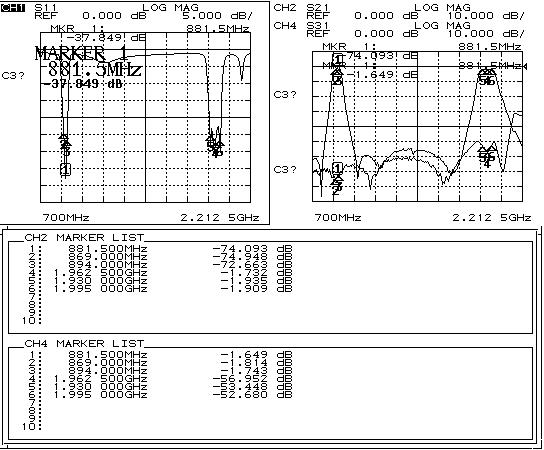

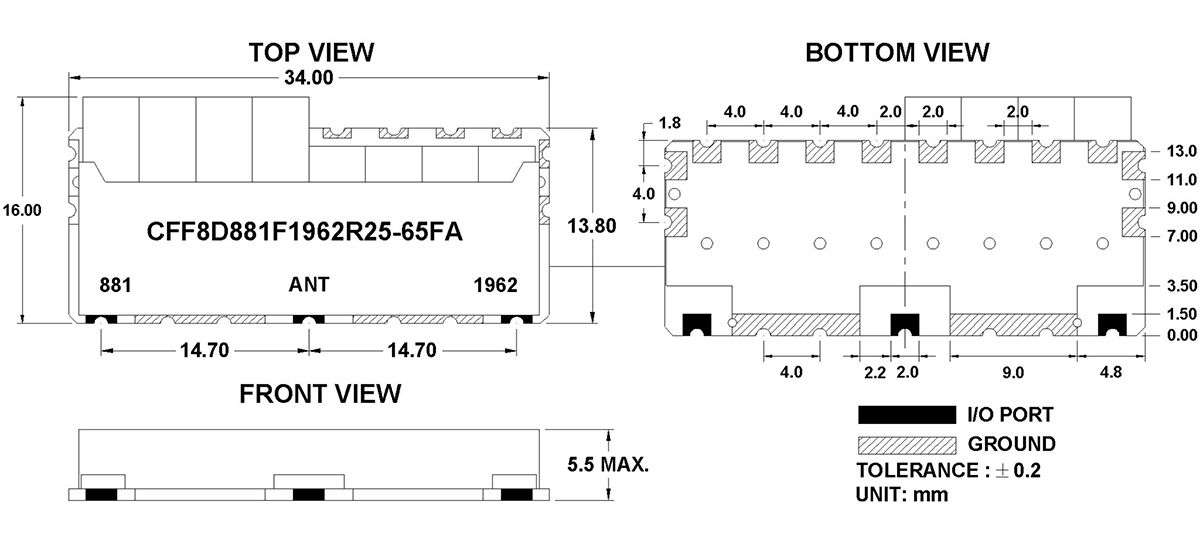

机械规格图
