CFN10C412R422N05FA
下载产品PDF
电气规格表
|
ITEMS |
ANT >> Low |
ANT >> High |
UNIT |
|
Center Frequency [fo] |
412.5 |
422.5 |
MHz |
|
Bandwidth [BW] |
fo ±2.5 [410.0 ~ 415.0] |
fo ±2.5 [420.0 ~ 425.0] |
MHz |
|
Insertion Loss in BW |
4.5 |
4.5 |
dB max |
|
Ripple in BW |
2.5 |
2.5 |
dB max |
|
Return Loss in BW |
15.0 |
15.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
60.0 dB min. @ [420.0 ~ 425.0 ] |
60.0 dB min. @ [410.0 ~ 415.0 ] |
MHz |
|
18.0 dB min. @ [417.50 ~ ] |
18.0 dB min. @ [417.50 ~ ] |
MHz |
|
|
dB min. @ [ ~ ] |
dB min. @ [ ~ ] |
MHz |
|
|
dB min. @ [ ~ ] |
dB min. @ [ ~ ] |
MHz |
|
|
Isolations |
dB min. @ [ ~ ] |
MHz |
|
|
dB min. @ [ ~ ] |
MHz |
||
|
Group Delay Variation |
|
ns max |
|
|
Input Power |
3.0 |
W max. |
|
|
In/Out Impedance |
50 Ω |
||
|
Operation Temperature Range |
-40℃ to +85℃ |
||

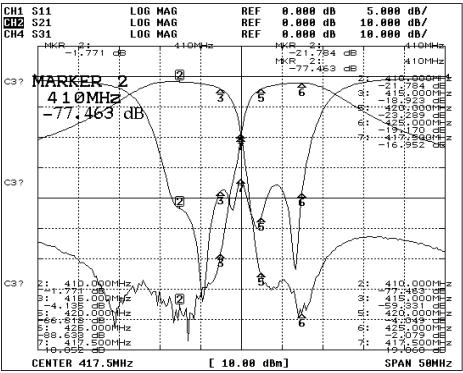

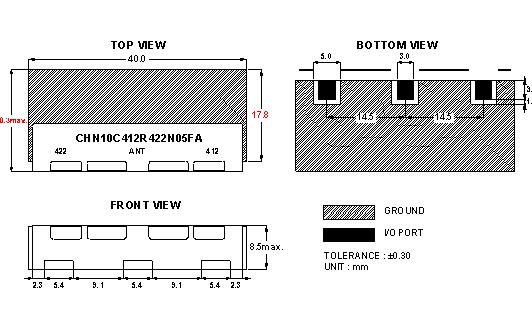

机械规格图
绘图数据
推荐的PC板模式

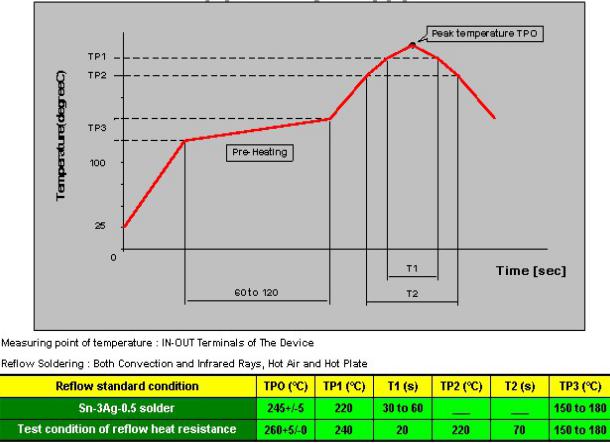

焊接条件
