Details description

CFN10P1950F2140N60FA

下载产品PDF

电气规格表

ITEMS

ANT>>LOW

ANT>>High

UNIT

Center Frequency [fo]

1950

2140

MHz

Bandwidth [BW]

fo ±30  [1920~1980]

fo ±30  [2110~2170 ]

MHz

Insertion Loss in BW

3.5

3.5

dB max

Ripple in BW

0.5

0.5

dB max

Return Loss in BW  R ANT Port

18.0

18.0

dB min

VSW Rin BW      R ALL Port





max

Attenuation

   R Absolute Value

   £ Relative  Value

60dB min @  [ 2110 ~ 2170]

55dB min @  [ 1920~1980]

MHz

dB min @ fo ± [  ~  ]

dB min @ fo ± [  ~  ]

MHz

dB min @ fo ± [  ~  ]

dB min @ fo ± [  ~  ]

MHz

dB min @ fo ± [  ~  ]

dB min @ fo ± [  ~  ]

MHz

Group Delay Variation

dB min@[    ~     ]

ns max

dB min@ [    ~     ]



Input Power

3

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃

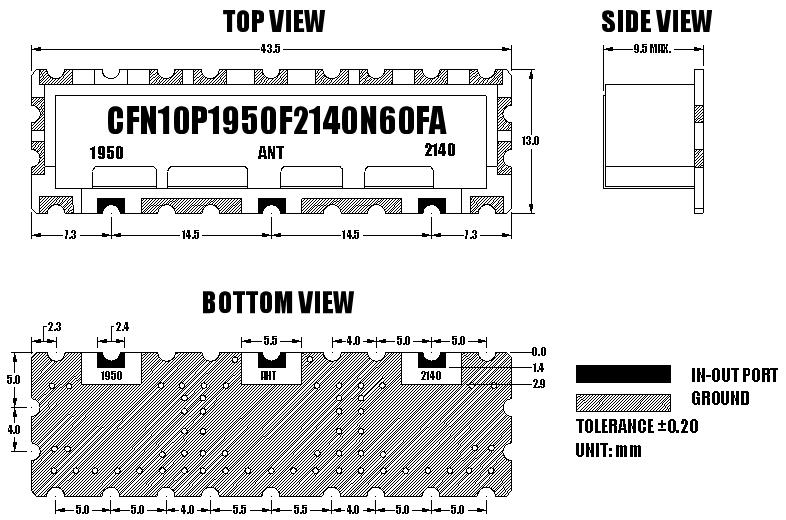

机械规格图

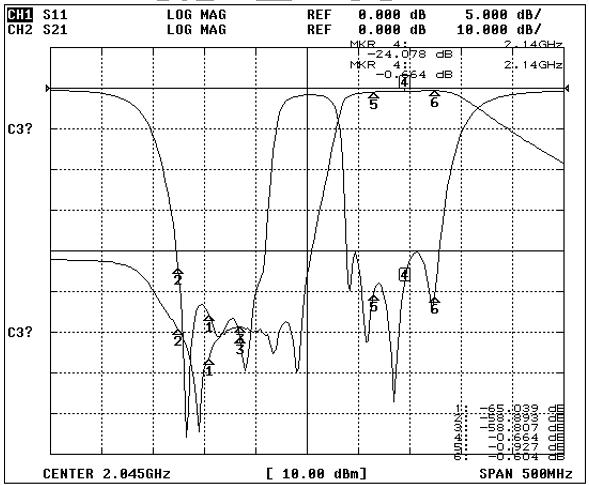

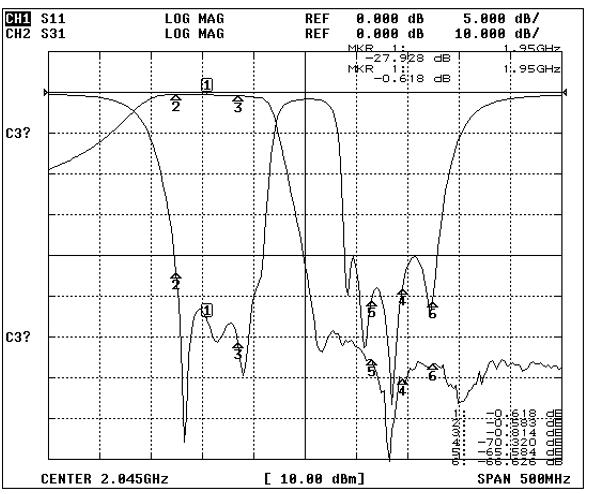

绘图数据

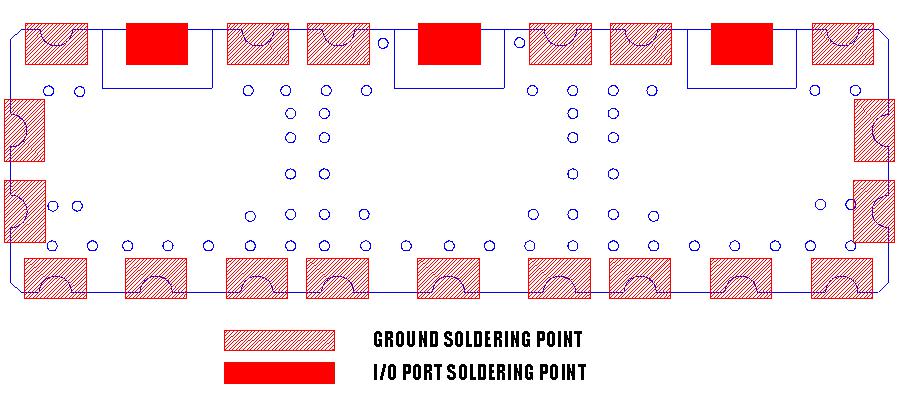

推荐的PC板模式
