CFD4A2140R60SA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
2140 |
MHz |
|
Bandwidth [BW] |
fo ± 30 [2110 ~ 2170 ] |
MHz |
|
Insertion Loss in BW |
2.2 |
dB max |
|
Ripple in BW |
0.6 |
dB max |
|
Return Loss in BW |
15.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
40dB min @ fo ±200 [ 1940 ~ 2340 ] |
MHz |
|
35dB min @ [ 4280 ] |
MHz |
|
|
dB min @ fo ± [ ~ ] |
MHz |
|
|
dB min @ fo ± [ ~ ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
|
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

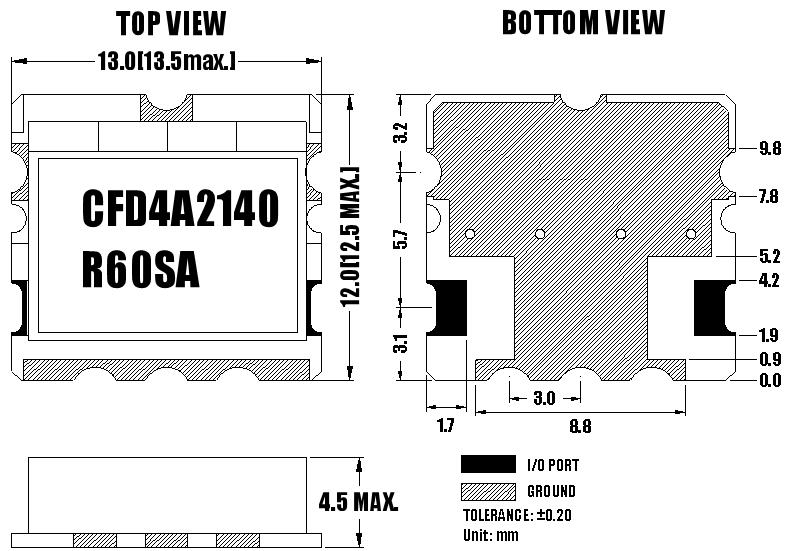

机械规格图
绘图数据

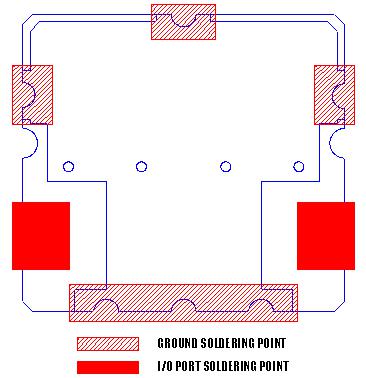

推荐的PC板模式
焊接条件
