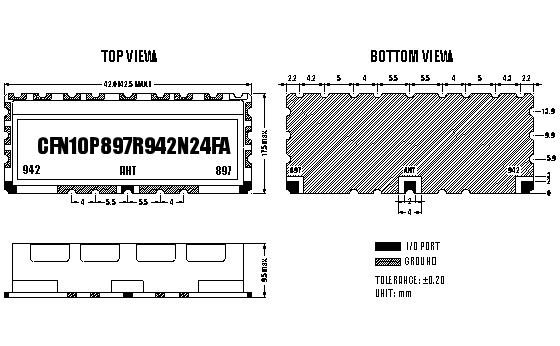

CFN10P897R942N24FA

ITEMS

ANT >> Low

ANT >> High

UNIT

Center Frequency [fo]

897.0

942.0

MHz

Bandwidth [BW]

fo ±12.0

fo ±12.0

MHz

Insertion Loss in BW

2.3

2.0

dB max

Ripple in BW

1.2

1.0

dB max

Return Loss in BW

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

35.0 dB min. @  DC-715

35.0 dB min. @  DC-760

MHz

55.0  dB min. @  930-954

55.0 dB min. @  885-909

MHz

    dBmin. @ [    ~    ]

   dBmin. @[    ~    ]

MHz

    dBmin. @ [    ~    ]

   dBmin. @[    ~    ]

MHz

Group Delay Variation

ns max

Input Power

3.0

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃
