CFF10P902R947N25FA
下载产品PDF
电气规格表
|
ITEMS |
ANT >> Low |
ANT >> High |
UNIT |
|
Center Frequency [fo] |
902.5 |
947.5 |
MHz |
|
Bandwidth [BW] |
fo ±12.50[890.0 ~915.0] |
fo ±12.5.0[935.0 ~960.0] |
MHz |
|
Insertion Loss in BW |
3.0 |
3.5 |
dB max |
|
Ripple in BW |
1.7 |
1.7 |
dB max |
|
Return Loss in BW |
13.0 |
13.0 |
dB min |
|
Attenuation R Absolute Value £ Relative Value |
45.0 dB min. @[935 ~960] |
50.0 dB min. @[890 ~915] |
MHz |
|
dB min. @ [ ~ ] |
dB min. @ [ ~ ] |
MHz |
|
|
dB min. @ [ ~ ] |
dB min. @ [ ~ ] |
MHz |
|
|
dB min. @ [ ~ ] |
dB min. @ [ ~ ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
|
Input Power |
2.0 |
W max. |
|
|
In/Out Impedance |
50 Ω |
||
|
Operation Temperature Range |
-40℃ to +85℃ |
||
机械规格图

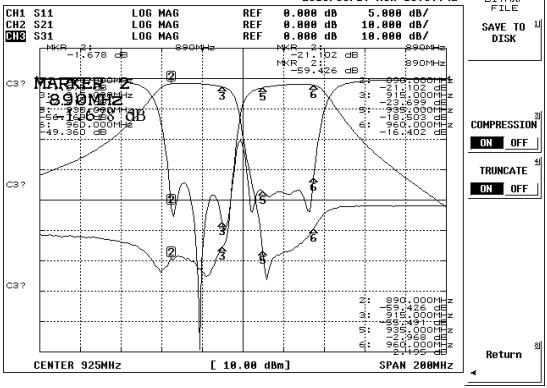

绘图数据

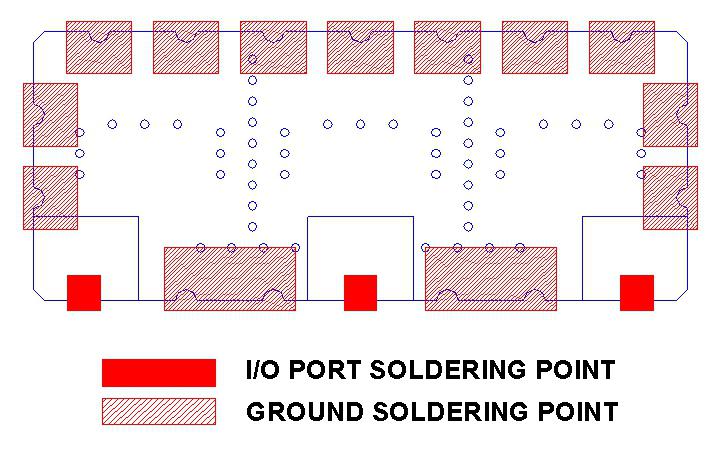

推荐的PC板模式
焊接条件
