Details description

CFN10P1950F2140N60FA

下载产品PDF

电气规格表

ITEMS

ANT>>LOW

ANT>>High

UNIT

Center Frequency [fo]

1950

2140

MHz

Bandwidth [BW]

fo ±30 [1920~1980]

fo ±30 [2110~2170]

MHz

Insertion Loss in BW

1.8

1.8

dB max

Ripple in BW

1.0

1.0

dB max

Return Loss in BW  R ANT Port

14.0

14.0

dB min

VSW Rin BW      R ALL Port





max

Attenuation

   R Absolute Value

   £ Relative  Value

60dB min @ fo ± [ 2110~2170 ]

55dB min @ fo ±[ 2110~2170 ]

MHz

dB min @ fo ± [  ~  ]

dB min @ fo ± [  ~  ]

MHz

dB min @ fo ± [  ~  ]

dB min @ fo ± [  ~  ]

MHz

dB min @ fo ± [  ~  ]

dB min @ fo ± [  ~  ]

MHz

Group Delay Variation

dB min@[    ~     ]

ns max

dB min@ [    ~     ]



Input Power

3

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃

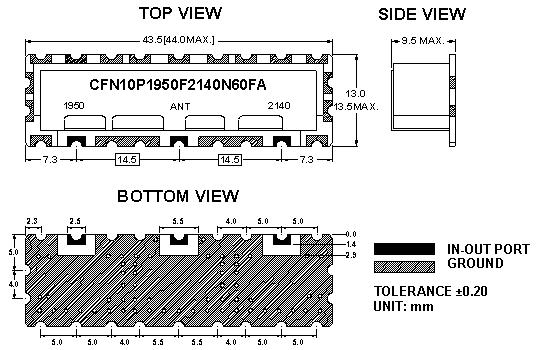

机械规格图

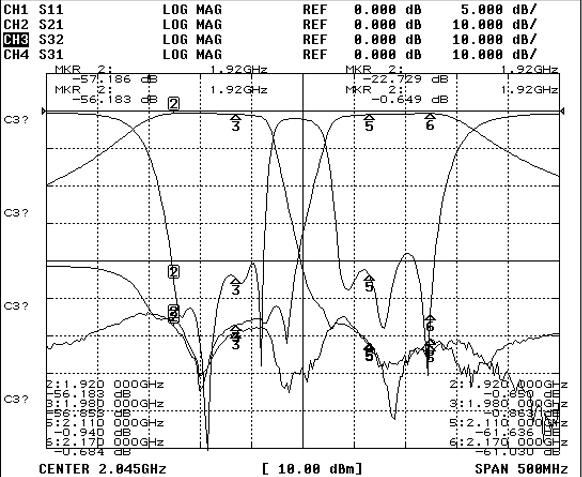

绘图数据

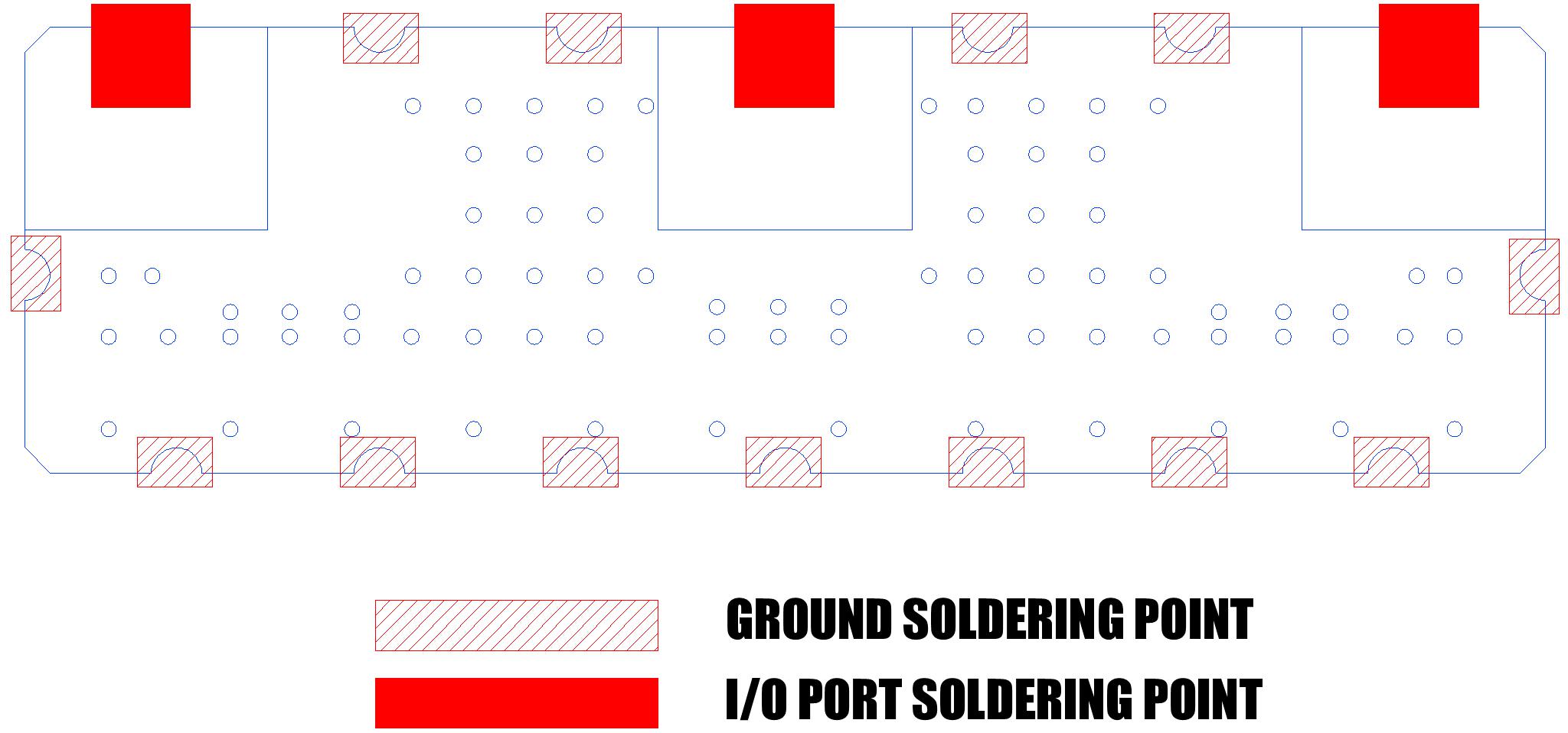

推荐的PC板模式

焊接条件
