Details description

CFN10C1747R1842N75FA

下载产品PDF

电气规格表

ITEMS

ANT>>LOW

ANT>>High

UNIT

Center Frequency [fo]

1747.5

1842.5

MHz

Bandwidth [BW]

fo ±37.5 [1710~1785]

fo ±37.5 [1805~1880]

MHz

Insertion Loss in BW

3.0

3.0

dB max

Ripple in BW

2

2

dB max

Return Loss in BW  R ANT Port

15.0

15.0

dB min

VSW Rin BW      R ALL Port





max

Attenuation

   R Absolute Value

   £ Relative  Value

40dB min @ fo ±[ 1805~1880 ]

40dB min @ fo±[ 1710~1785 ]

MHz

dB min @ fo ± [  ~  ]

dB min @ fo ± [  ~  ]

MHz

dB min @ fo ± [  ~  ]

dB min @ fo ± [  ~  ]

MHz

dB min @ fo ± [  ~  ]

dB min @ fo ± [  ~  ]

MHz

Group Delay Variation

dB min@[    ~     ]

ns max

dB min@ [    ~     ]



Input Power

3

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃

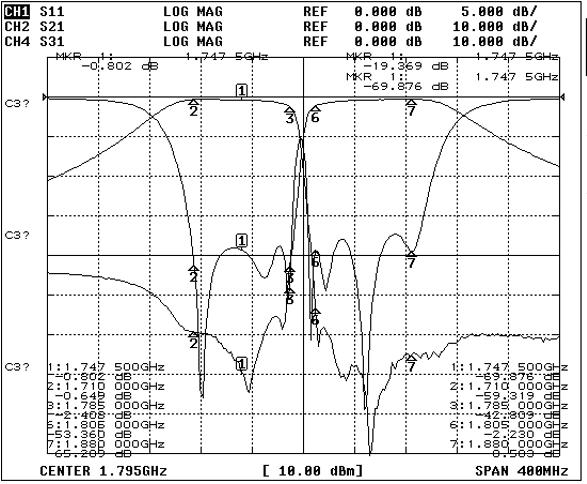

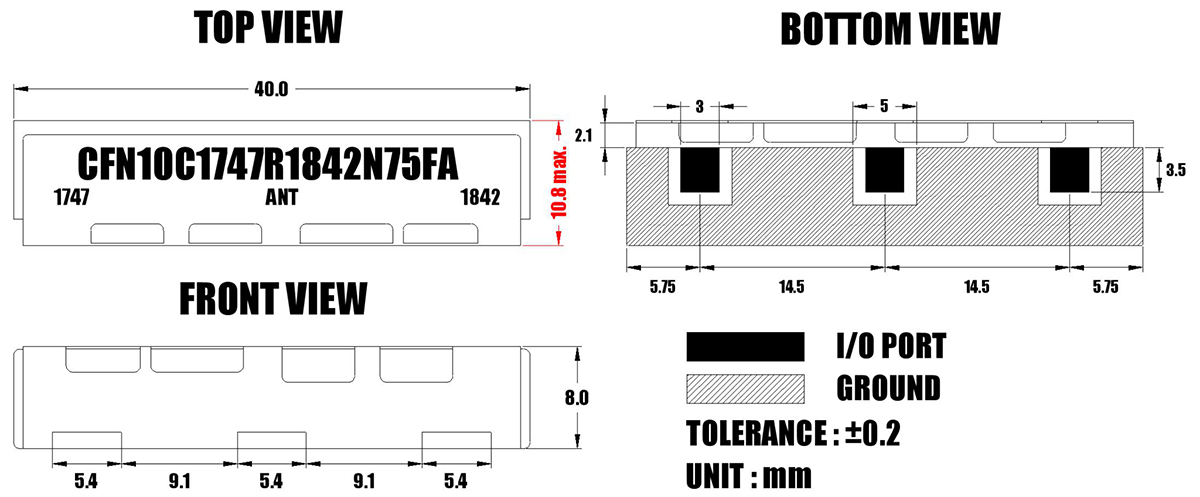

机械规格图

绘图数据

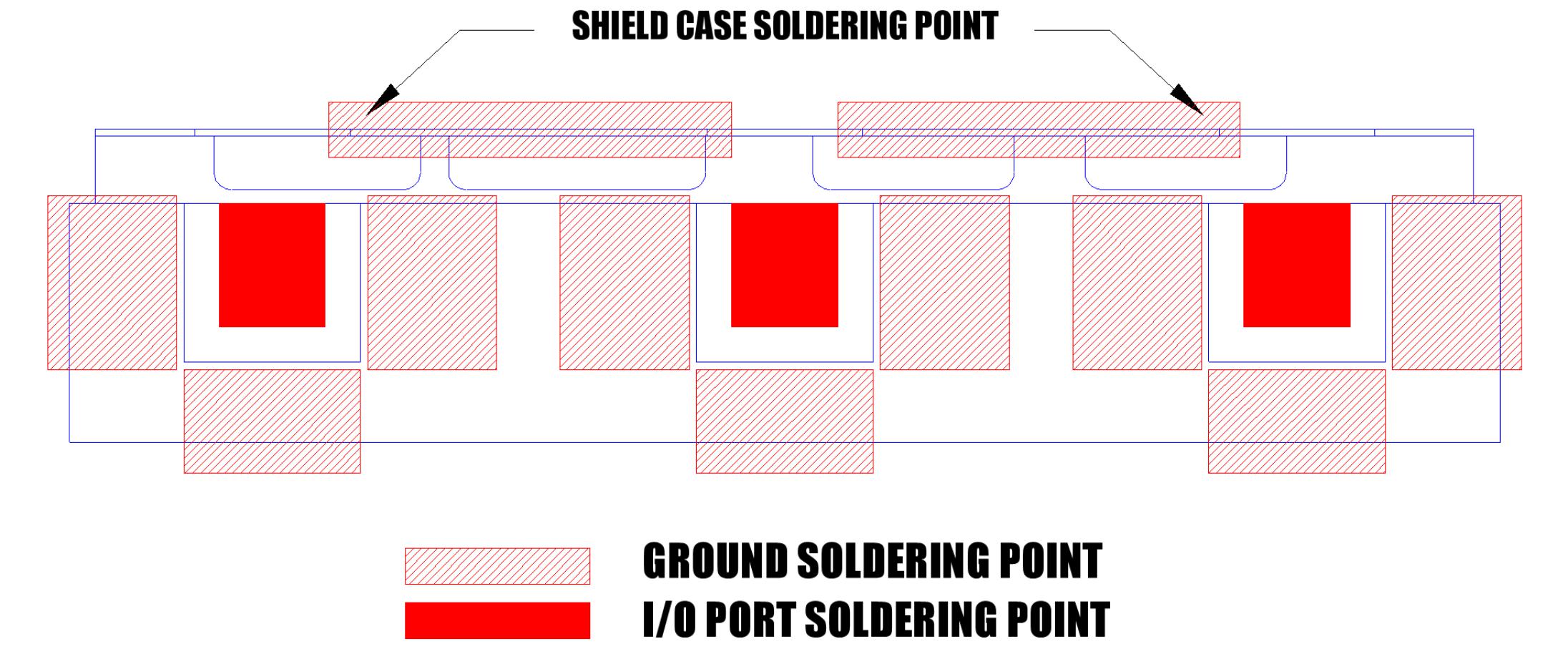

推荐的PC板模式
