CFF10P1747F1842N75FA
下载产品PDF
电气规格表
|
ITEMS |
ANT>>LOW |
ANT>>High |
UNIT |
|
Center Frequency [fo] |
1842.5 |
1747.5 |
MHz |
|
Bandwidth [BW] |
fo ±37.5 [1805~1880] |
fo ±37.5 [1710~1785] |
MHz |
|
Insertion Loss in BW |
2.0dB max @ [ TX:1860~1880 ] |
2.0dB max@ [RX:1710~1730] |
dB max |
|
2.0dB max @ [ TX:1860~1880 ] |
2.0dB max@ [RX:1710~1730] |
dB max |
|
|
Ripple in BW |
2.0dB max @ [ TX:1860~1880 ] |
2.0dB max@ [RX:1710~1730] |
dB max |
|
2.0dB max @ [ TX:1860~1880 ] |
2.0dB max@ [RX:1710~1730] |
dB max |
|
|
Return Loss in BW R ANT Port |
14.0 |
14.0 |
dB min |
|
VSW Rin BW R ALL Port |
|
|
max |
|
Attenuation R Absolute Value £ Relative Value |
43.0dB typ. 40dB min@[1710~ 1785] |
MHz |
|
|
43.0dB typ. 40dB min@[1710~ 1785] |
MHz |
||
|
dB min @ fo ± [ ~ ] |
MHz |
||
|
dB min @ fo ± [ ~ ] |
MHz |
||
|
Isolations |
43.0dB typ. 40dB min@[1710~ 1785] |
MHz |
|
|
43.0dB typ. 37dB min@[1805~ 1880] |
MHz |
||
|
Input Power |
3 |
W max. |
|
|
In/Out Impedance |
50 Ω |
||
|
Operation Temperature Range |
-40℃ to +85℃ |
||

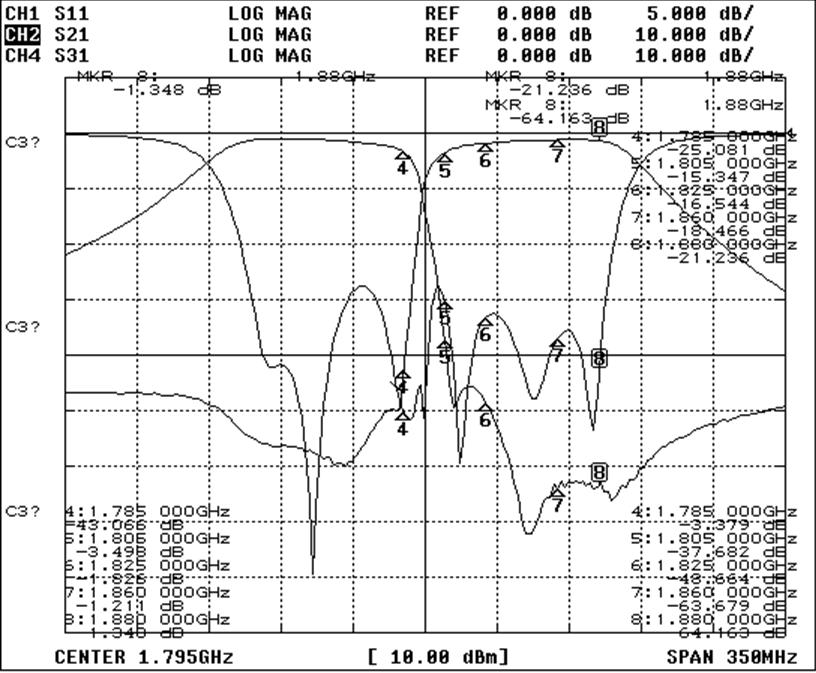

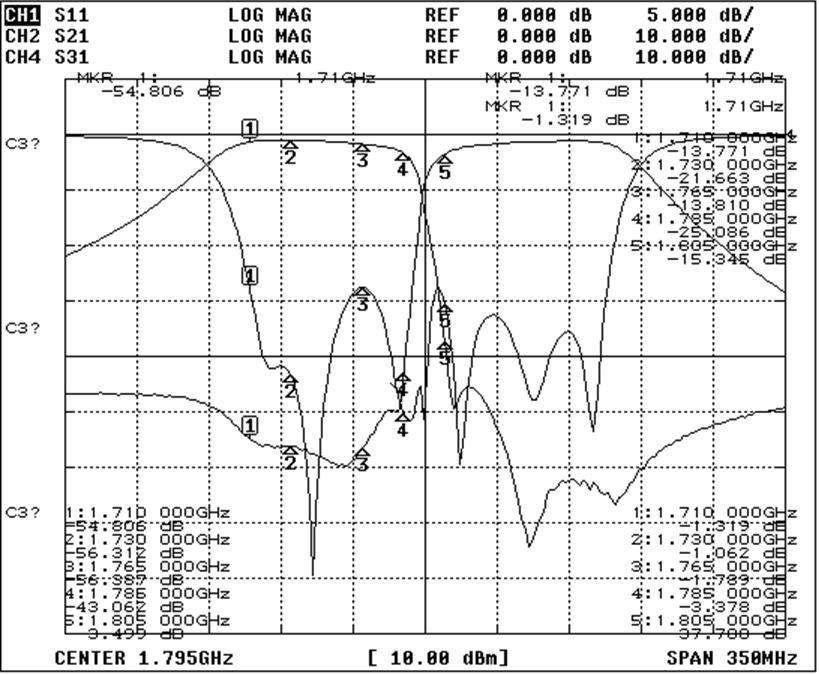

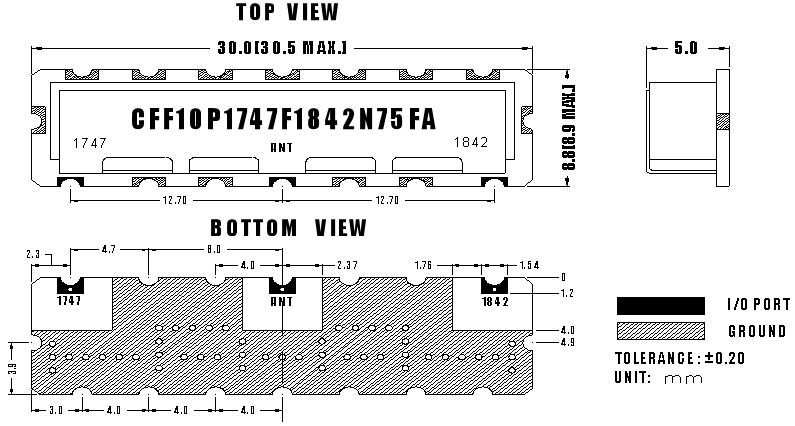

机械规格图
绘图数据

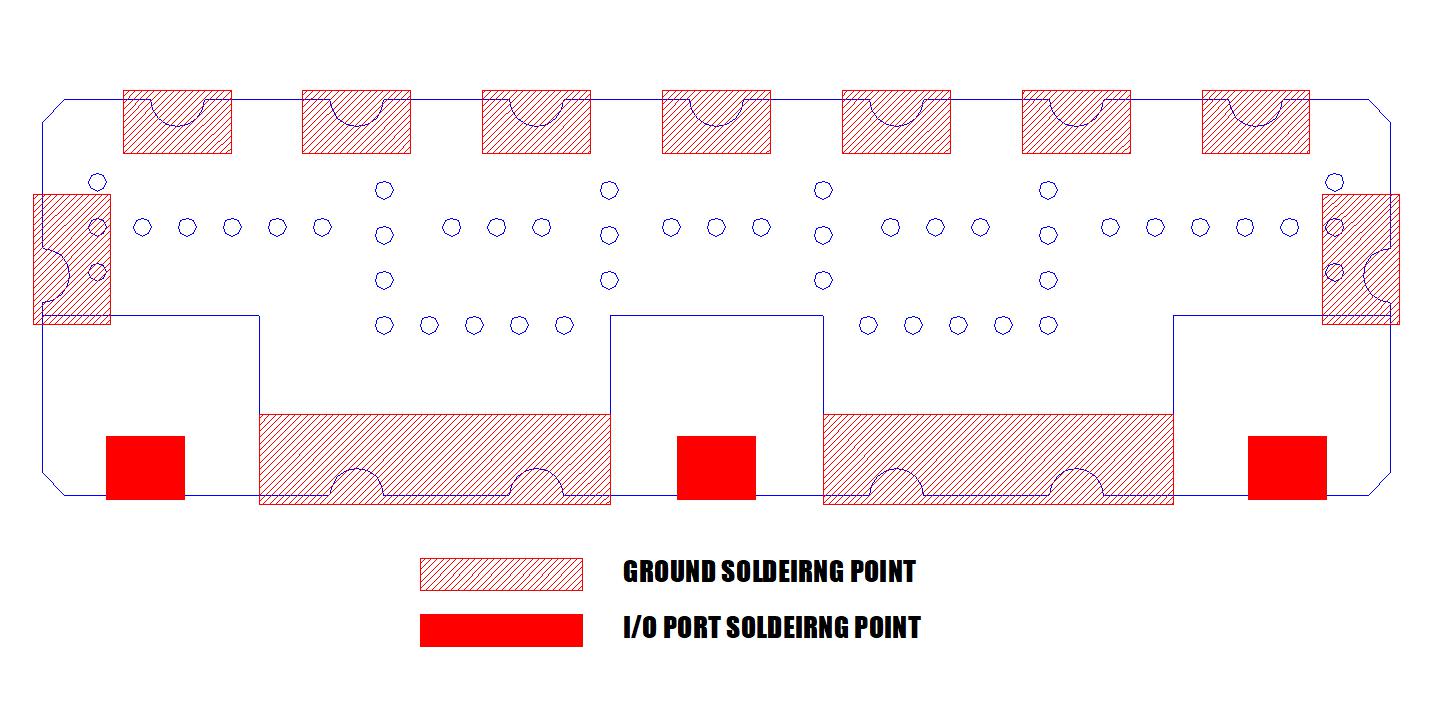

推荐的PC板模式
