Details description

CFD4A441R28SA

下载产品PDF

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

441.0

MHz

Bandwidth [BW]

fo ±14.0  [427.0 ~ 455.0]

MHz

Insertion Loss in BW

3.0

dB max

Ripple in BW

0.5

dB max

Return Loss in BW

15.0

dB min

Attenuation

   RAbsolute Value

   £Relative  Value

60.0 dB min @ fo ±      [ 350.0   &       ]

MHz



20.0 dB min @ fo ± 37.0  [ 404.0   &  478.0 ]

MHz



  dB min @ fo ±      [        &       ]

MHz



dB min @ fo ±      [        &       ]

MHz

Group Delay Variation

5.5

ns max

Input Power



W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃

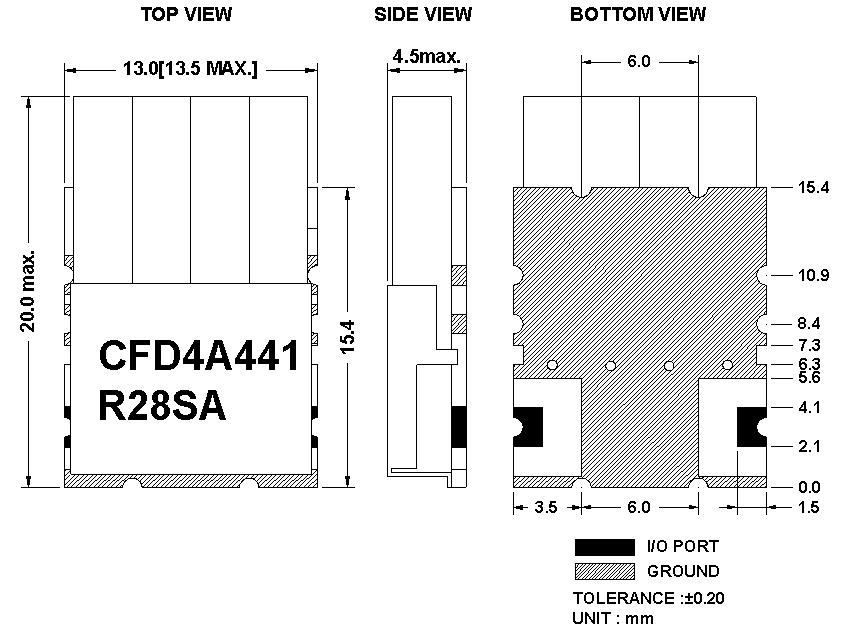

机械规格图

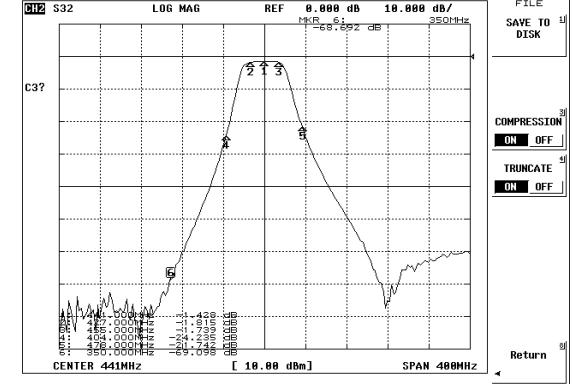

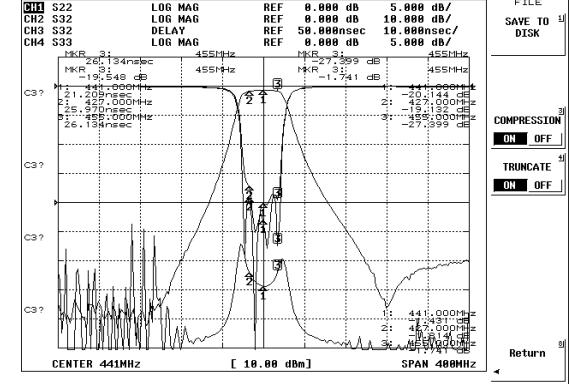

绘图数据



推荐的PC板模式

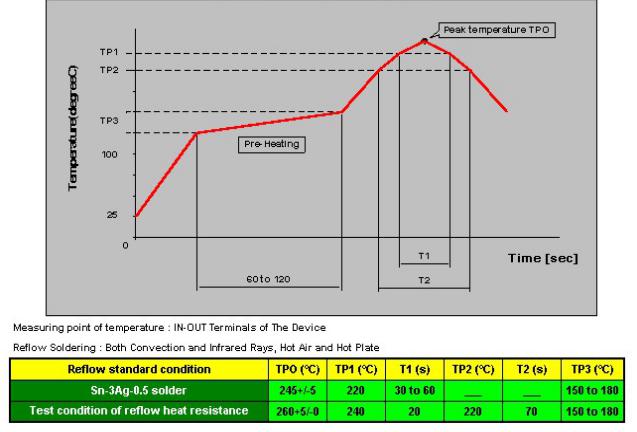

焊接条件
