CFK6C706N08FA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
706.0 |
MHz |
|
Bandwidth [BW] |
fo ±4.0 [702.0 ~ 710.0] |
MHz |
|
Insertion Loss in BW |
3.5 |
dB max |
|
Ripple in BW |
0.8 |
dB max |
|
Return Loss in BW |
15.0 |
dB min |
|
Attenuation RAbsolute Value £Relative Value |
5.0 dB min. @ fo ± 8.0 [ 698.0 & 714.0] |
MHz |
|
20.0 dB min. @ fo ±12.0 [694.0 & 718.0] |
MHz |
|
|
40.0 dB min. @ fo ±50.0 [656.0 & 756.0] |
MHz |
|
|
dB min. @ fo ± [ & ] |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
2.0 |
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

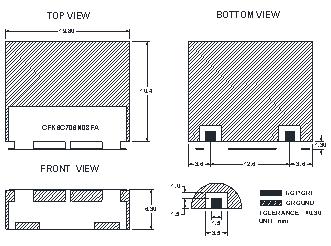

机械规格图

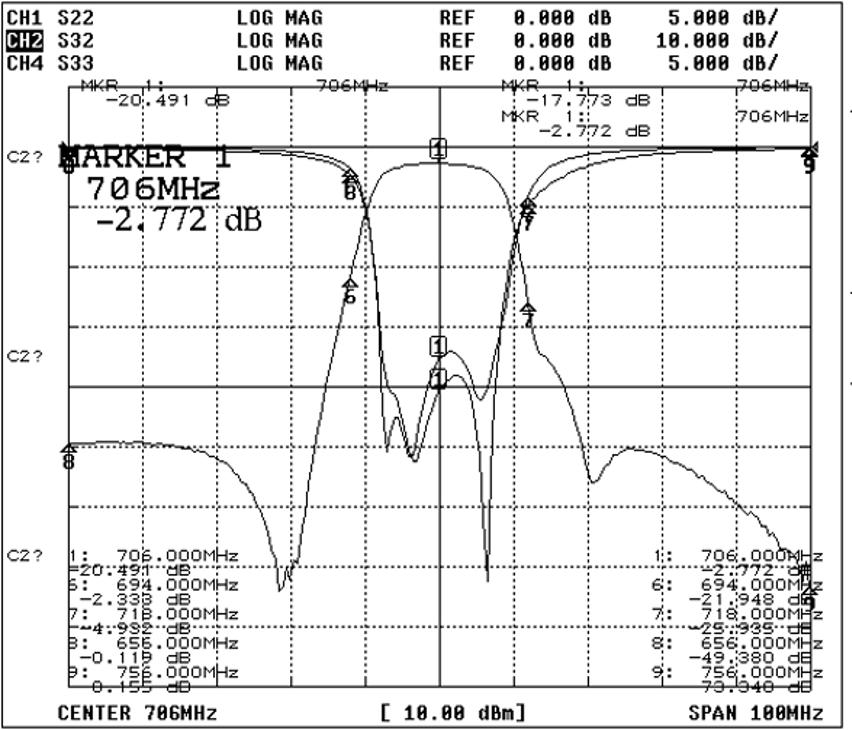

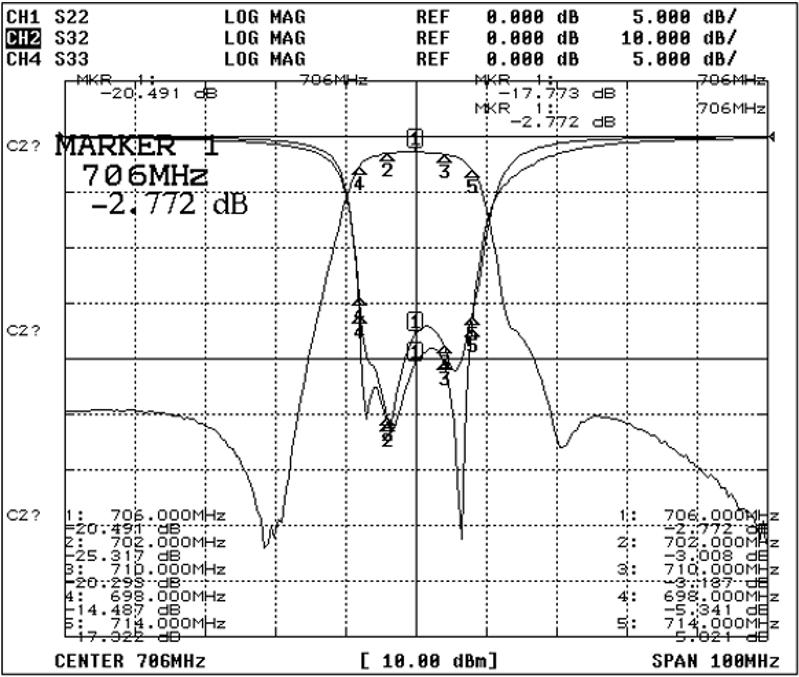

绘图数据
推荐的PC板模式

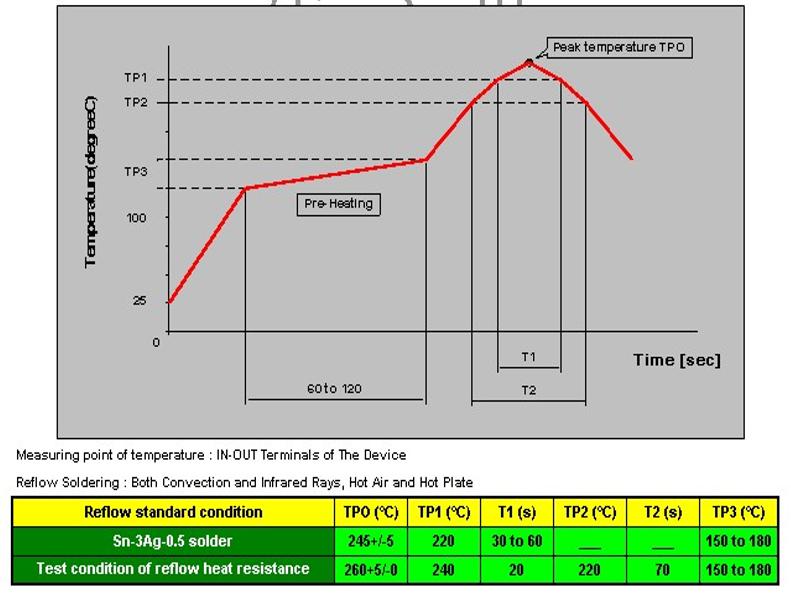

焊接条件
