CFK4C611R06FA
下载产品PDF
电气规格表
|
ITEMS |
SPEC |
UNIT |
|
Center Frequency [fo] |
611.0 |
MHz |
|
Bandwidth [BW] |
fo ±3.0 [608.0 ~ 614.0] |
MHz |
|
Insertion Loss in BW |
2.0 |
dB max |
|
Ripple in BW |
1.0 |
dB max |
|
Return Loss in BW |
15.0 |
dB max |
|
Attenuation RAbsolute Value £Relative Value |
55 dB min. @ 500.0 |
MHz |
|
55 dB min. @ 560.0 |
MHz |
|
|
50 dB min. @ 660.0 |
MHz |
|
|
50 dB min. @ 860.0 ~ 960.0 |
MHz |
|
|
Group Delay Variation |
|
ns max |
|
Input Power |
|
W max. |
|
In/Out Impedance |
50 Ω |
|
|
Operation Temperature Range |
-40℃ to +85℃ |
|

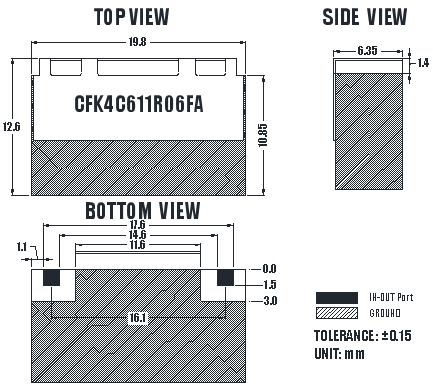

机械规格图

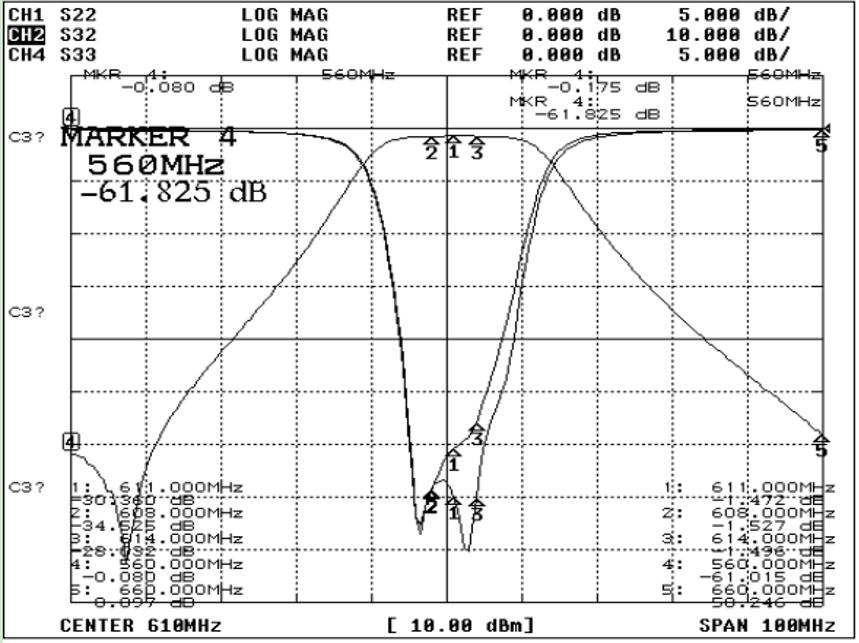

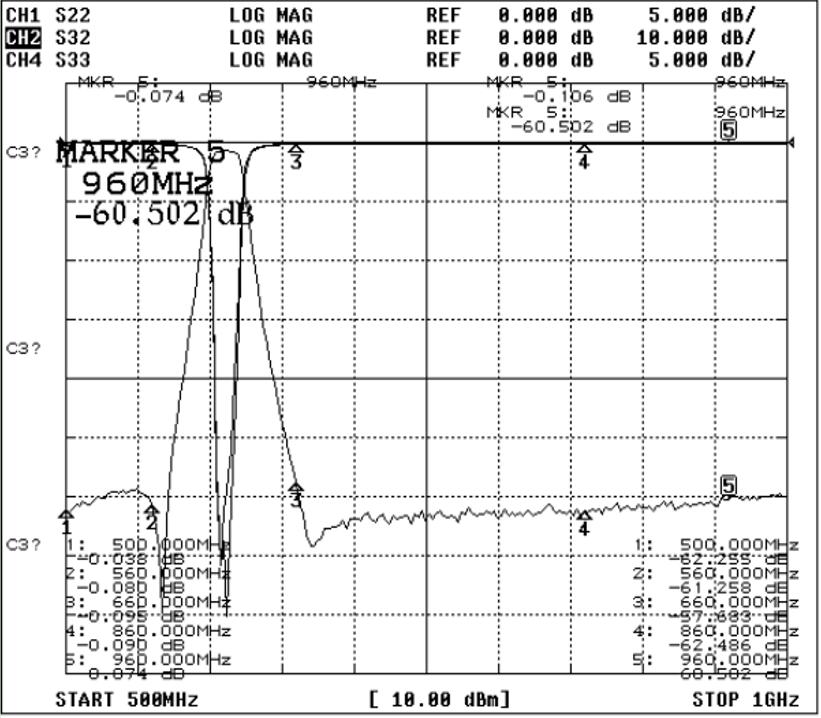

绘图数据

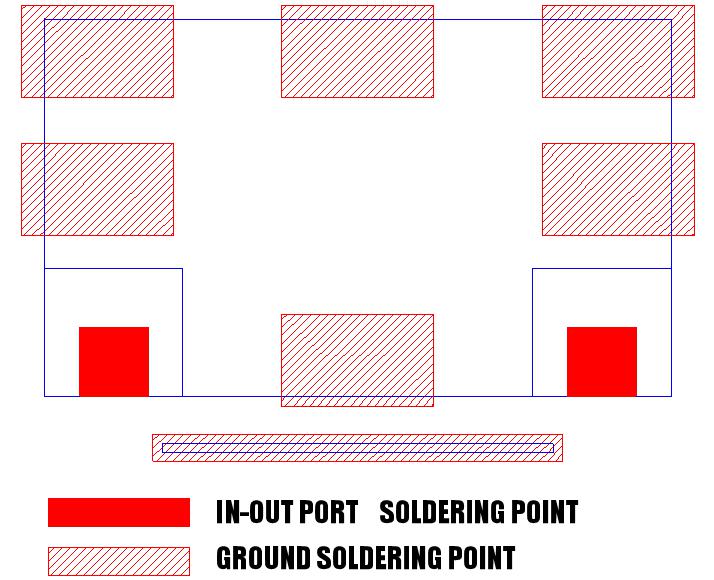

推荐的PC板模式
焊接条件
