Details description

CFK8P2140N140FA

下载产品PDF

电气规格表

ITEMS

SPEC

UNIT

Center Frequency [fo]

2140

MHz

Bandwidth [BW]

fo ±70  [2070  ~  2210 ]

MHz

Insertion Loss in BW

3.0

dB max

Ripple in BW

1.5

dB max

Return Loss in BW

1.6

dB min

Attenuation

   R Absolute Value

   £ Relative  Value

20dB min @ fo ±90 [ 2050 ~ 2230]

MHz

      53dB min @ fo ±170 [ 1970 ~2 310]

MHz

dB min @ fo ± [    ~     ]

MHz

dB min @ fo ± [    ~     ]

MHz

Group Delay Variation



ns max

Input Power

2

W max.

In/Out Impedance

50 Ω

Operation Temperature Range

-40℃ to +85℃

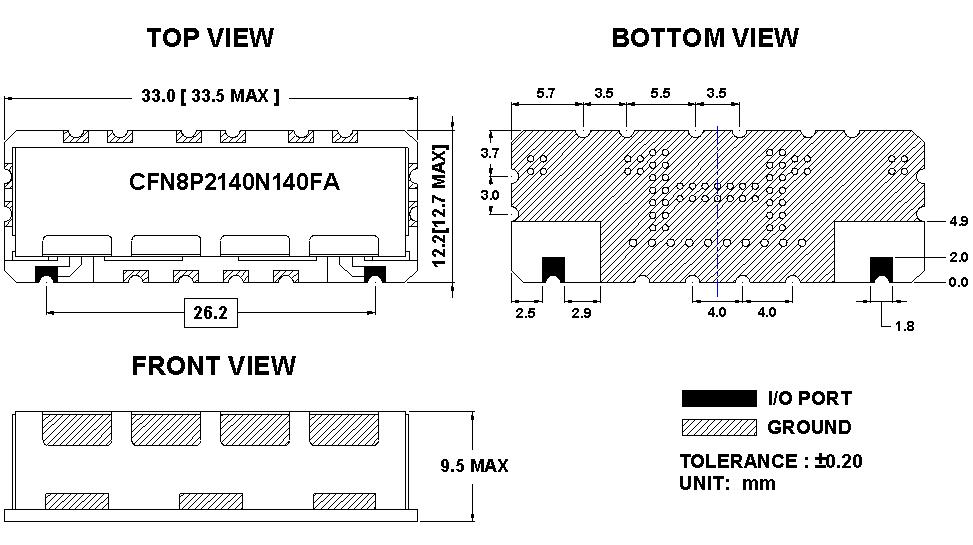

机械规格图

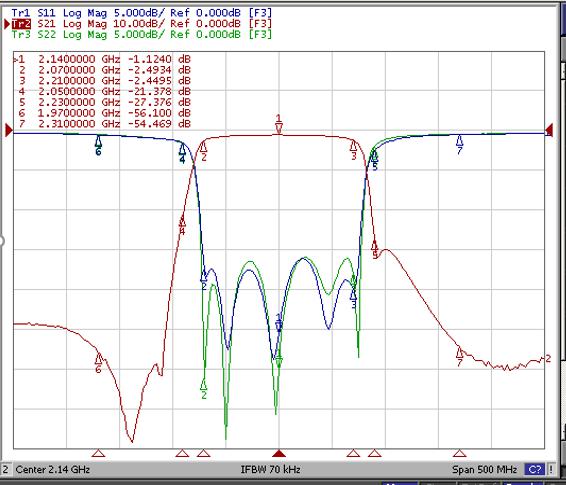

绘图数据

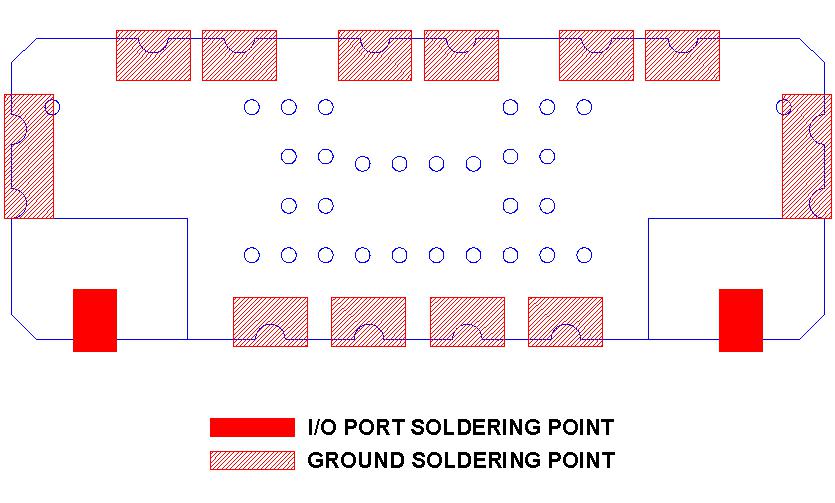

推荐的PC板模式

焊接条件
